Welding 15k Piezoelectric Transducer Ultrasound For Face Mask Machinery

China Welding 15k Piezoelectric Transducer Ultrasound For Face Mask Machinery supplier

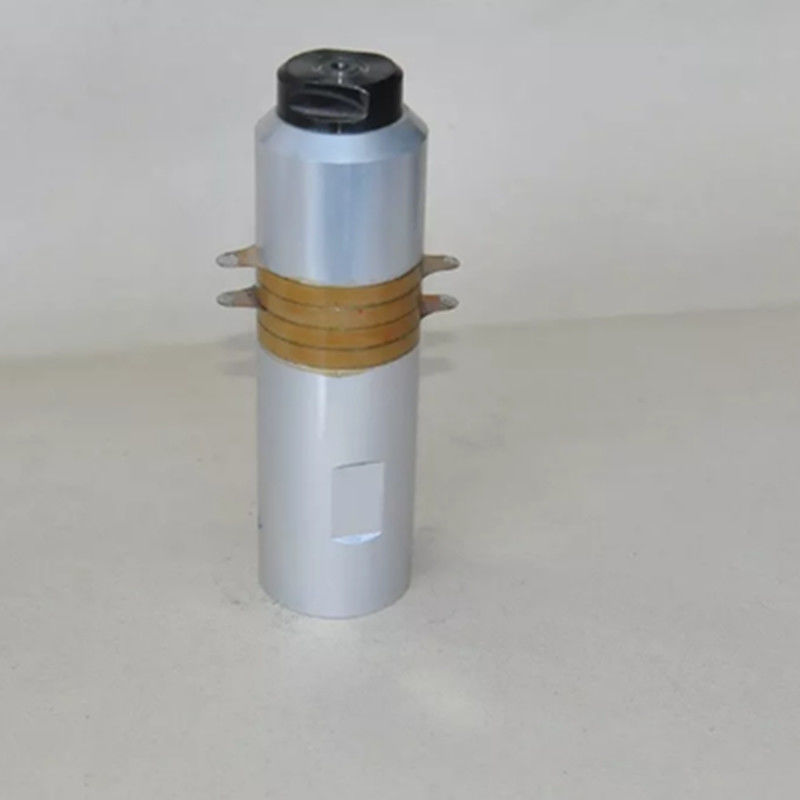

Large Image :  Welding 15k Piezoelectric Transducer Ultrasound For Face Mask Machinery

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Model Number: HS-5015-4Z Frequency: 15k
Max Amplitude: 12um Input Power: 1500W
Certification: CE Qty Of Ceramic: 4
Product Name: Ultrasonic Transducer Usage: Mask Making Machine

Ultrasonic Welding 15k ultrasonic transducer for face mask machinery



Description:

Ultrasonic transducer is an energy device that realizes the conversion of electrical energy, mechanical energy or acoustic energy from one form of energy to another. It is also called an ultrasonic transducer, also called an active sensor. Among them, the more mature and reliable device is the piezoelectric effect to realize the conversion of electrical energy and acoustic energy, also known as piezoelectric transducer.





Transducer Type and Power:

There are different regulations for the nominal power of machines for different purposes and purposes. In other words, the same transducer used on different machines may have different nominal power. In order to avoid ambiguity, the customer should specify the structure type of the transducer, such as column type, inverted horn type, etc., and the diameter and number of piezoelectric ceramic wafers.





Specifications:



Model HS-5015-4Z
Frequency 15khz
Output power 1500watt
Joint bolt M18*1.5
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 12~13nf
Amplitude 12um
Application Welding



Features:

1.Adopt the imported chips

2.High output power

3.High quality

4.Already export to USA, Europe, Asia ,Middle East etc country

5.15KHz-70KHz,100w-6000w supplied



Application :

The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.



Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation
