20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine

China 20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine supplier
20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine supplier 20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine supplier

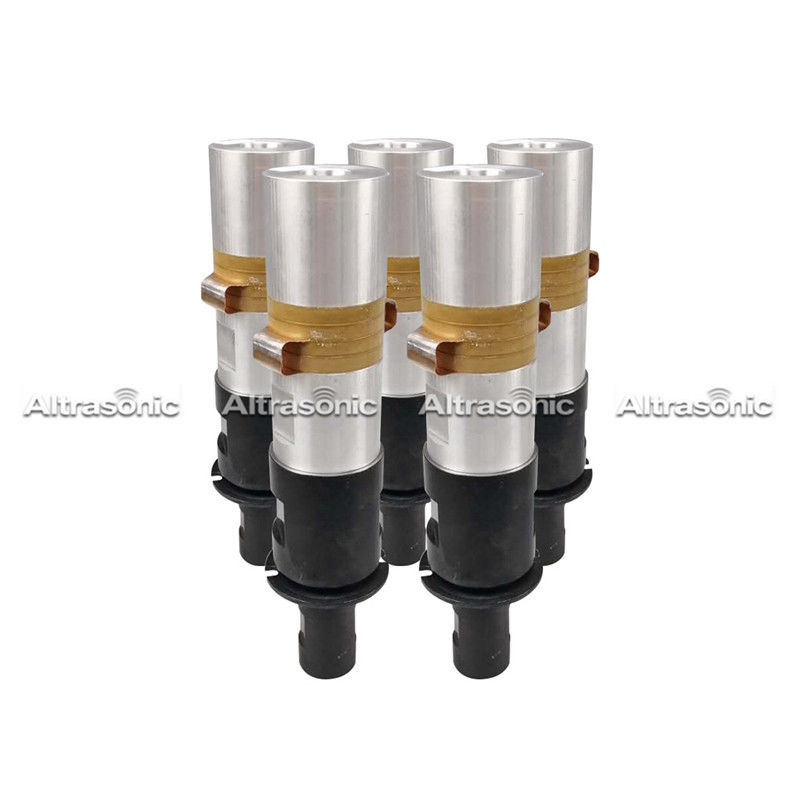

Large Image :  20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 20Khz Power: 1500w
Weight (KG): 2.55 KG Certificate: CE

20KHZ Frequency 1500W Ultrasonic Transducer For Welding Machin mask making machine



Description:

Ultrasonic welding converts 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy using an ultrasonic generator. The converted high-frequency electric energy is converted into mechanical motion of the same frequency again through the transducer, and then the mechanical motion is transmitted to the welding head through a set of amplitude changing rod devices. The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into thermal energy by friction to melt the plastic. Ultrasound can be used not only to weld rigid thermoplastics, but also to process fabrics and films. The main components of an ultrasonic welding system include an ultrasonic generator, a transducer / amplifier / welding head triplet, a mold and a frame.





Instructions for use:

The frequencies of the ultrasonic transducer, booster and horn must match each other.

The frequency of the horn and booster should be lower than the frequency of the transducer.

The connection surface must be vertical and flat, and the connection torque must be appropriate.

The welding of the electrode plates should be reliable and covered with damping glue.

Input power should be lower than rated power





Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



Main Features

1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration.3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity

5. Bolt-on mounting gives the fast, easy installation and high reliability.

6. easy for assembling

7. good heat resistance

8. large range of working temperature

9. low resonance impedance and heat productivity

10. good construction

11. fastened by bolt



Specification:



Model HS-5020-4Z
Frequency 20khz
Output Power 1500watt
Joint Bolt M18*1.5
Ceramic Disc Diameter 50mm
Quantity of Ceramic Discs 4pcs
Capacitance 11-17nf
Amplitude 8um
Application Welding
20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine
