Product Details:
|
| Product Name: | Analog Ultrasonic Generator | Output Power: | 2000W |
|---|---|---|---|
| Working Type: | Intermittent | Net Weight: | 14kgs |
| Frequency: | 15Khz-60Khz | Size: | 410*600*180 Mm |
| High Light: | ultrasonic generator,ultrasound generator |
||

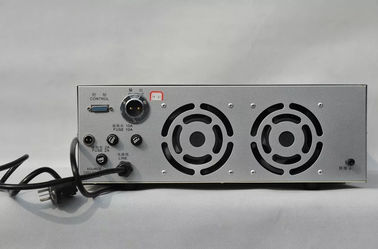

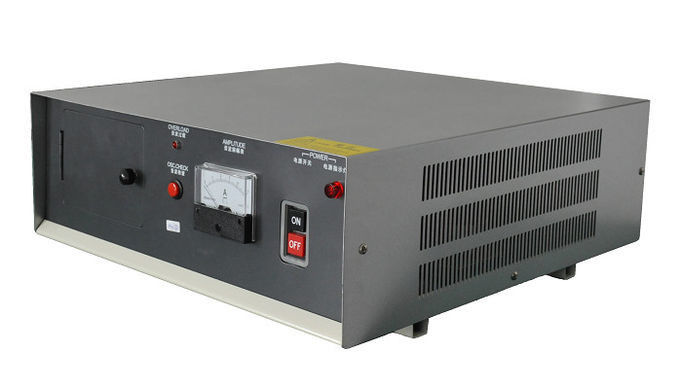

Medical Mask Machine High Power Ultrasonic Generator Ultrasonic Frequency Generator
Description:
The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.
Applications:
Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.
Specifications:
| Model | HS-ASA-2000 |
| Frequency | 15khz-60khz |
| Output power | 100-3000watt |
| Frequency tuning method | Intermittent |
| Size | 410*600*180 mm |
| Voltage | 220V 50/60HZ |
| Net weight | 14kgs |
| Temperature | ≤300℃ |
| Moisture | ≤85%RH |
Competitive Advantages:
★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.
Comparison:
| Analog generator | Digital generator | |
| Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
| Automatic search | × | ● |
| Automatic frequency tracking | × | ● |
| Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
| Power regulation | × | ● |
| 24 hours of continuous work | × | ● |
| Non resonant condition | × | ● |
| LCD | × | ● |
| Add the PLC protocol | × | ● |
| Automatic circuit protection | Bad, easy to cause the damage of components | Good |
| Repair method | Professional repair | Module replacement |
