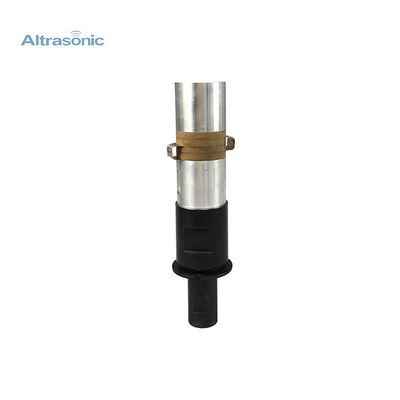

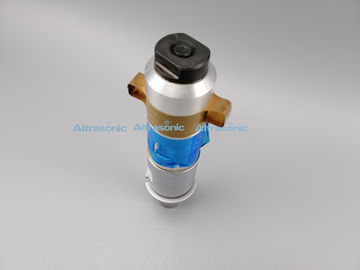

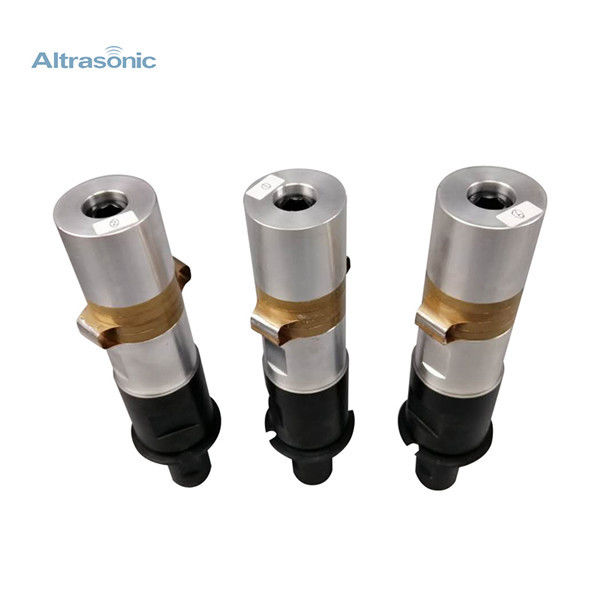

Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K

Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K
Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K

Large Image :  Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K

Description
Ceramic Diameter: 50Mm Qty Of Ceramic: 4Pcs
Color: Sliver+ Blue Max.Amplitude: 10Um
Application: Ultrasonic Device Output: Digital Sensor
High Light:

high frequency ultrasonic transducer

,

portable transducer

Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K



Description:



The ultrasonic welding transducer is the core component of the entire ultrasonic system and is responsible for converting high frequency and high voltage into mechanical kinetic energy.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Specifications:



Model HS-5020-4Z
Frequency 20 khz
Output power 1500W
Joint bolt M18*1.5
Ceramic Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11~17Nf
Amplitude 10 um
Application welding machine



Main feature:



1) Simple structure, beautiful appearance, convenient installation and maintenance.

2) The equipment is flexible and can be perfectly customized according to customer needs.

4) The operation is highly automated, intelligent and pollution-free.

5) Excellent equipment performance, regardless of the load, can run continuously for 24 hours.

6) The working time, delay time and holding time can be set according to customer needs.



Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K 0Booster Ultrasonic Welding Transducer , High Frequency Piezoelectric Transducer 20K 1
