50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories

50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories
50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories

Large Image :  50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories

Description
Model Number: HS-5020-4Z Materia: Stainless Steel, Aliminum Alloy,ceramic,titanium Alloy(customised)
Power: 1500w Used: Ultrasonic Welder, Ultrasonic Fabric Welding Machine, Ultrasonic Sewing And So On
High Light:

high frequency ultrasonic transducer

,

portable transducer

50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories



Specifications:



Model HS-5020-4Z
Frequency 20khz
Output Power 1500watt
Joint Bolt M18*1.5
Ceramic Disc Diameter 50mm
Quantity of Ceramic Discs 4pcs
Capacitance 11-17nf
Amplitude 8um
Application Welding,mask machine



Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.



Features:



1. The product looks clean, does not rust, and has no obvious dents and scratches

2.High efficiency, high mechanical quality factors, and can obtain very high elector-acoustic conversion efficiency when working at the resonance frequency.



Advantages:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

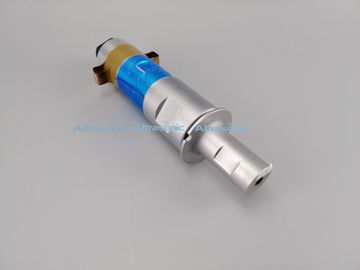

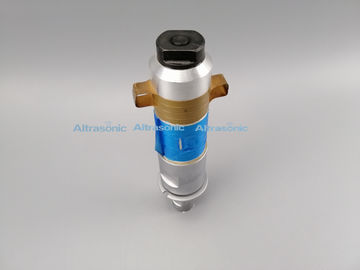

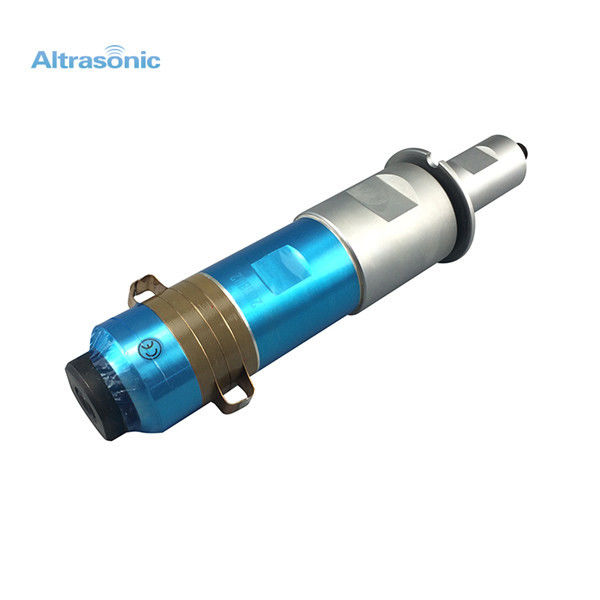

Detailed Image:



50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 0

50mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 150mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 250mm Ultrasonic Welding Transducer Automatic Disposable Face Mask Machine Accessories 3
