Product Details:
|
| Model: | HS-5020-4Z | Frequency: | 20K |
|---|---|---|---|
| Power: | 1500w | Application: | Welding,mask Machine |
| High Light: | high frequency ultrasonic transducer,portable transducer |
||

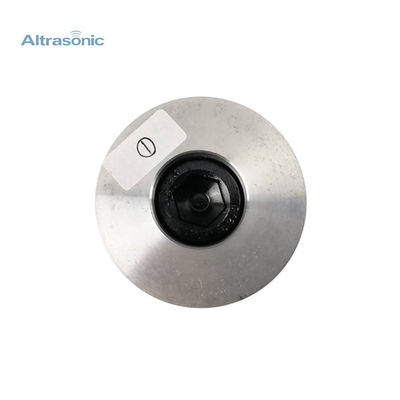

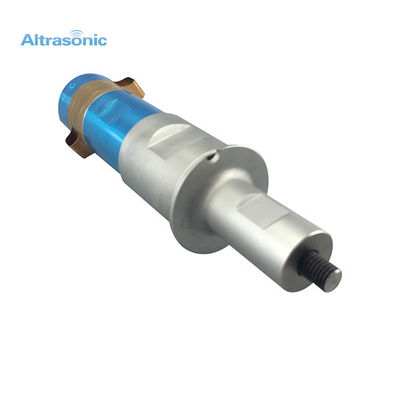

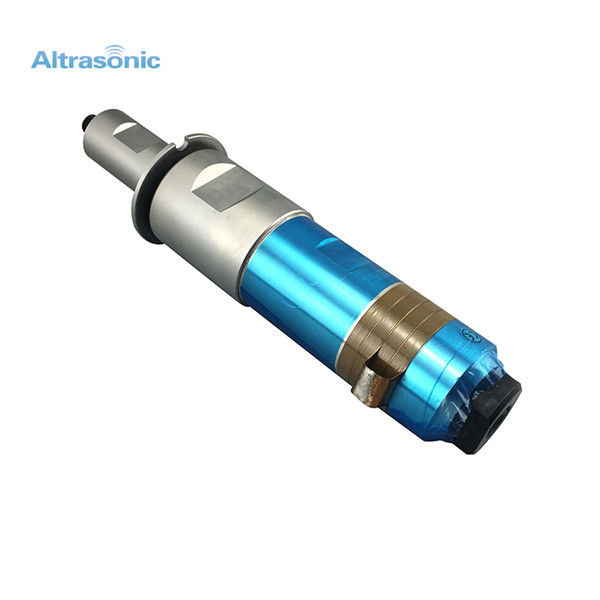

CE Certified High Power Ultrasonic Transducer For Nonwoven Mask Machine
Specification:
| Model | HS-5020-4Z |
| Frequency | 20khz |
| Output Power | 1500watt |
| Joint Bolt | M18*1.5 |
| Ceramic Disc Diameter | 50mm |
| Quantity of Ceramic Discs | 4pcs |
| Capacitance | 11-17nf |
| Amplitude | 8um |
| Application | Welding,mask machine |
Description:
Ultrasonic transducer is a device that converts electrical energy into mechanical energy (ultrasonic). Among them, the mature and reliable device that realizes the mutual conversion of electrical energy and acoustic energy by the piezoelectric effect is called a piezoelectric transducer. It consists of a central piezoelectric ceramic element, front and rear metal cover plates, a prestressed screw, electrode pads and an insulating tube. This sandwich transducer (bolt-fastened transducer) generates stable ultrasonic waves when the load changes, and is the basic and main method for obtaining a power ultrasonic drive source.
Advantages:
1. Energy saving
2. No need to equip with smoke ventilation
3. Low cost and high efficiency
4.easy to achieve automated production
Service:
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
