Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life

China Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life supplier
Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life supplier Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life supplier Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life supplier

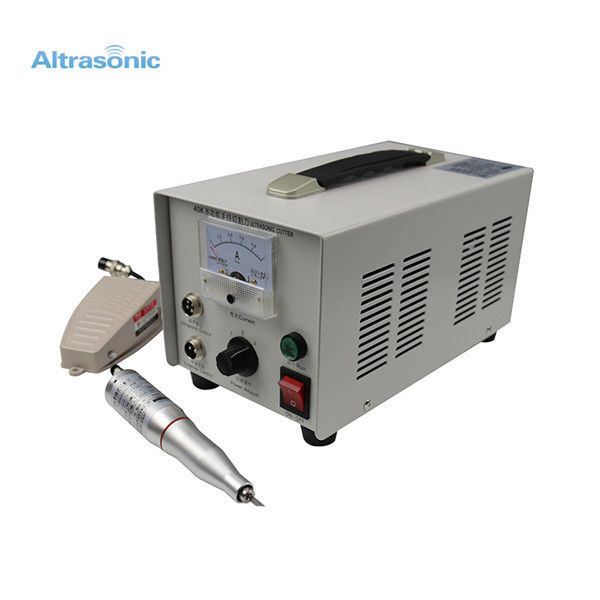

Large Image :  Titanium alloy40khz 100 Watts Ultrasonic Cutting Machine For Films / Plastic , Long Life

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Saw Blade Diameter: 5mm Knife: Replaceable
Frequency: 40khz Size Of Generator: 155 X 265 X 170mm
Outer Skin: Aluminum Type: Rubber Cutting Machine
Power: 100w Length Of Cable:: 3M
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices

40k  100w ultrasonic cutting machine for films,plastic

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,
ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,
wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,
the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



Advantage:

· Environment-friendly (No noise, no smoke, no air contamination)

· Smooth cutting of difficult-to-cut materials

· Small hand-held size(can be attached to automotive machinery arms)

· No special installation equipmen



Application:

Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be cut by ultrasound.



Warranty:

We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter

titanium alloy, stainless steel
