Product Details:
|
| Model: | HSW35 | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 1000Watt | Horn: | ≤10mm |
| Weight: | 1.0kg | Generator: | Digital Generator |
| High Light: | portable spot welding machine,portable spot welder |
||

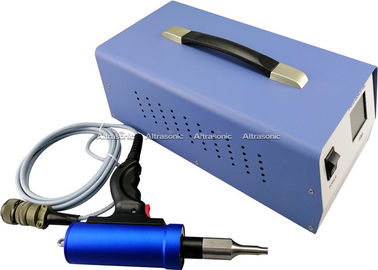

Desktop Easy To Use Portable Spot Welding Machine For High Mounted Stop Lamp
Description:
Ultrasonic Welding Machine is the fastest, cheapest, most precise and effective technology used for welding. By using the ultrasounds, a plastic component is welded at a molecular level thanks to the vibrations issued by the sonotrode. The frequencies of the sonotrodes may vary from 20 kHz, 30 kHz, 35 kHz up to 40 kHz, with the amplitude values from 50 to 5 µm.
Specifications:
| Item No. | HSW20 | HSW30 | HSW35 | HSW40 | HSW50 |
| Frequency | 20KHz | 30KHz | 35KHz | 40KHz | 50KHz |
| Power | 1000W | 1200W | 1000W | 500W | 300W-500W |
| Horn | ≤12mm | ≤10mm | ≤10mm | ≤10mm | ≤10mm |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 44mm |
| Weight of Welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
1.0kg |
Applications:
It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.

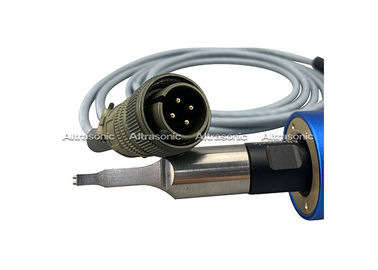

Detailed Images:
Advantages:
1.Application in riveting, forming and welding
2.Light weight, easy to take, easy to operate (handheld)
3.Equipped with welding timer
4.Easy to set time welding
5.Equipped with an overload protection circuit (voltage, current, phase, temperature, output)
6.Automatic resonance
7.Maintain the amplitude function automatically
