Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar

China Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar supplier
Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar supplier Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar supplier Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar supplier

Large Image :  Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Voltage: 110v/220v Dimensions: 100mm*45mm*32mm
Rated Capacity: 100 Frequency Tuning Method: Auto Tuning
MAX Diameter Of: 12mm Welding Type: Hand Held Operation

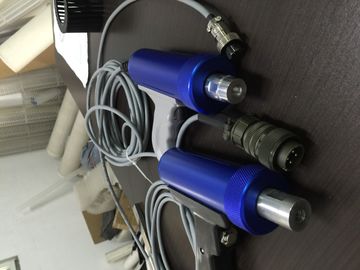

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.

Handheld ultrasonic Plastic Welder spot welding machine for Automotive AB pillar











Specification:



Ultrasonic steel wire mesh spot welding machine







Principle:



When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.

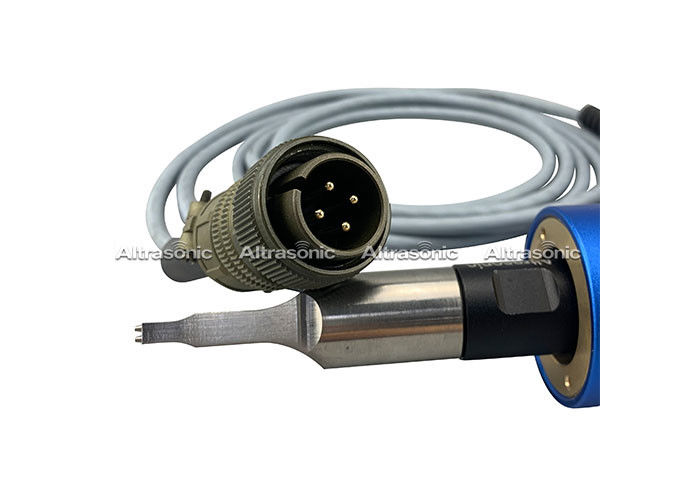

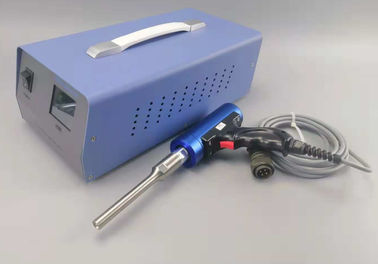

Detailed Images:

Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB PillarHandheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar





Main advantages:

♦ Rapid sonotrode exchange

♦ High quality, heavy duty aluminum housing

♦ High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

♦ Timer-controlled air cooling as an option

♦ Mobile – can be transported by handle on the generator case



Handheld Ultrasonic Plastic Welder Spot Welding Machine For Automotive AB Pillar
