Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k

Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k
Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k

Large Image :  Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-BCJ20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k

Description
Product Name: Ultrasonic Transducer Frequency: 20khz
Output Power: 2000w Joint Bolt: 1/2-20 UNF
Ceramic Disc Diameter: 50Mm Quantity Of Ceramic Discs: 6pc
Capacitance: 2nf Max. Amplitude: 20um
High Light:

high frequency ultrasonic transducer

,

portable transducer

Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k



Description:



The transducer is composed of vibrators and booster, which function is to convert electrical signals into mechanical vibration signals, and to realize the conversion of electrical energy to mechanical energy, which is also one of the most important factors in ultrasonic welding technology.

The Replacement Converter for Rinco 35khz machine Direct replacement for the Rinco 35khz machine that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.



Specifications:



Model HS-BCJ20
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-21 nf
Amplitude 20 um
Application welding machine




Replacement Item Specification:



Model

Frequency

(khz)

Ca(PF) Power(w) Machine
Branson 402 19.6-20.0 7800-8500 450-900 Branson8400
Branson 502 19.6-20.0 11500-12500 2000 Branson8800/5170
Branson CJ20 19.4-19.7 19000-21000 1100-4000 Branson2000 series
CB35A15A 36.5-7.5 3300-4000 800 Rinco-35A15A
CV231 38.3-39.0 3500-4500 900 40k Metal Welding
CV3510 36.2-37.0 3200-4000 800 Rinco-CV3510
Dukane 110-3122 19.6-20.0 12500-14000 2600 Dukane Heavy Duty




Detailed Images:



Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k 0

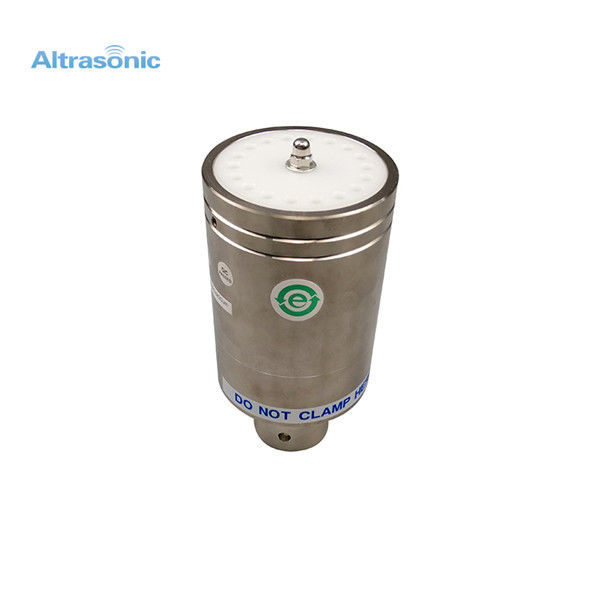

Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k 1



Applied Industries :



automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

clothing,packing, office supplies, toys, etc.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Branson CJ20 Replacement Ultrasonic Welding Transducer , Ultrasonic Level Transducer 20k 2
