20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter

20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter
20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter 20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter 20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter

Large Image :  20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter

Description
Product Name: Ultrasonic Welding Transducer Ceramic Diameter: 50mm
Joint Bolt: 1/2-20UNF Capacitance: 11~12 Nf
Frequency: 20khz Application: Welding Machine
High Light:

high frequency ultrasonic transducer

,

portable transducer

20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter



Description:



The transducer is composed of vibrators and booster, which function is to convert electrical signals into mechanical vibration signals, and to realize the conversion of electrical energy to mechanical energy, which is also one of the most important factors in ultrasonic welding technology.

The Replacement Converter for Rinco 35khz machine Direct replacement for the Rinco 35khz machine that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.



Specifications:



Model HS-5020-4D
Frequency 20khz
Output power 1500watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 30 mm
Quantity of Ceramic discs 2 pcs
Capacitance 11~12nf
Amplitude 8um
Application Welding



Detailed Images:

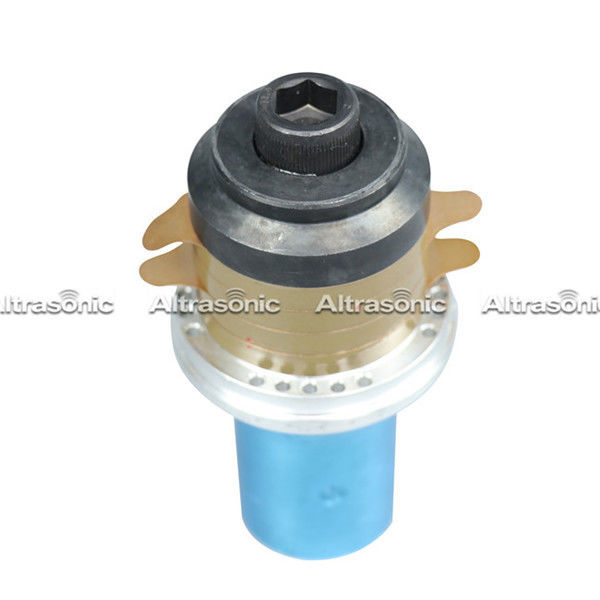

20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter 0



Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
20K 1500W High Frequency Ultrasonic Transducer Plastic Welding 50mm Ceramic Diameter 1
