PP PC ABS Auto Spot Welding Machine Mini Spot Welder For Automotive Interior Parts

PP PC ABS Auto Spot Welding Machine Mini Spot Welder For Automotive Interior Parts

Description:

Portable ultrasonic spot welding machine is an assembly technique for joining two thermoplastic components at localised points without the necessity for preformed holes or an energy director. Spot welding produces a strong structural weld and is particularly suitable for large parts, sheets of extruded or cast thermoplastic, and parts with complicated geometry and hard-to-reach joining surfaces.

Main Features:

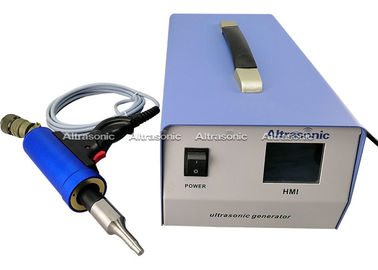

The handheld ultrasonic spot welding machine does not have a fixed device. It simply consists of a transducer and a welding head, and is connected to the ultrasonic generator through a power cord. Welding is performed manually. Small body, light weight, easy to carry and flexible operation.

Detailed Images:

Advantages:

Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case

                                      Schematic diagram of ultrasonic spot welding
                      1-stress 2- top acoustics tool 3-welding workpiece 4- lower acoustics tool

The welding effect:

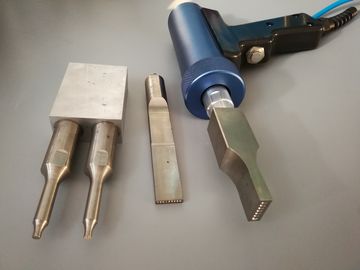

Types of Horn:

1. Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

2. Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
