Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts

China Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts supplier
Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts supplier Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts supplier Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts supplier

Large Image :  Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Warranty: 1 Year
Usage: Welding Output Power: 1000watt
Horn: <=10mm , Steel Material Application: Auto Parts Welding



Handheld Manually operated ultrasonic sport welding machine for auto parts



Description:



    Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.





Specifications:



Item No. HSW28 HSW30 HSW35 HSW40 HSW60
Frequency 28khz 30khz 35khz 40khz 60khz
Power 1000W 1200W 1000W 500W 300W-500W
Horn 12mm 10mm 10mm 10mm 10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg





Advantages:

1. Application in riveting, forming and welding

2. Light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easy to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec

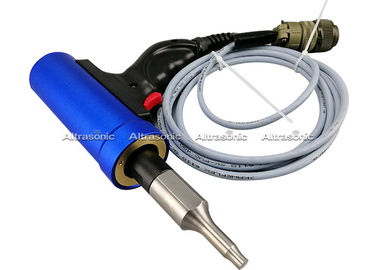

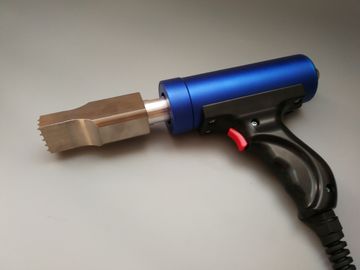

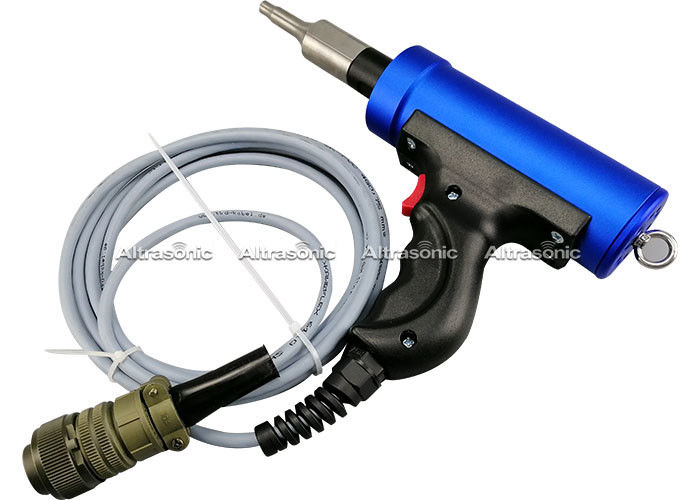

Detailed Images:

Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts



Application:



Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment, the toy industry, communications equipment and other industries.

Toy industry Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc
Electronic products

Recording, audio tape boxes and core wheel, disk enclosure, board of mobile

phone batteries and rectifier transformers, switches and sockets, remote control,

electronic swatter, pseudo-imitation caps, etc

Household appliances

Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle

air-hsiang, computer, etc

Stationery,

daily necessities

Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box

shell,the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning

bottles sealed container

Car, motorcycle

Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual

welding jacket, the car door welded baffle welding, automobile, car mats welding,

automotive bumper repair welding

The application

of the sports industry

Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool

table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps,

gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path

to indicate the brand, the X Display Stand and other sports equipment, etc

The packaging industry Hollow crate welding, ziplock welded



Handheld Manually Operated Ultrasonic Spot Welding Machine For Auto PartsHandheld Manually Operated Ultrasonic Spot Welding Machine For Auto Parts
