|Product Name:||Ultrasonic Welding Transducer||Ceramic Diameter:||60mm|
|Booster Color:||Gray And Black Optional||Application:||Welding Big Plastic Samples|

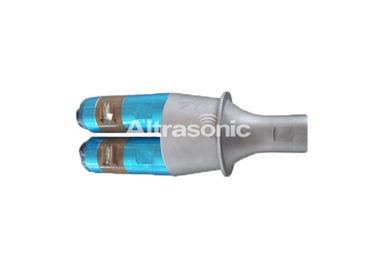

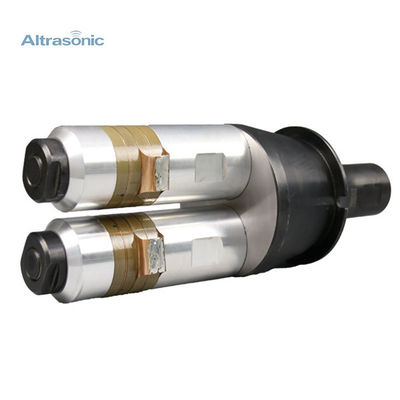

Frequency converter 15khz 4200w Double Ultrasonic Welding Transducer with Booster
The transducer with double horn can generator larger amplitude than single item. So it is applied to difficult welding environment requirements,
including big auto parts and other big plastic samples.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
|Joint bolt||M20 1.5|
|Ceramic disc Diameter||60 mm|
|Quantity of Ceramic discs||8 pcs|
|Capacitance||8-10 nf ,10-12nf , 12.5-13.5nf|
· Power range from100W to 6000 W
· Frequency range from 15 kHz to 70 kHz
· 98% efficiency
· Tough stainless steel casing
· Easy to assemble without special tools
· Compressed air cooling connection
· good construction
· Piezoelectric element offer a high speed of vibration.
. large range of working temperature
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
