High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz

High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz
High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz

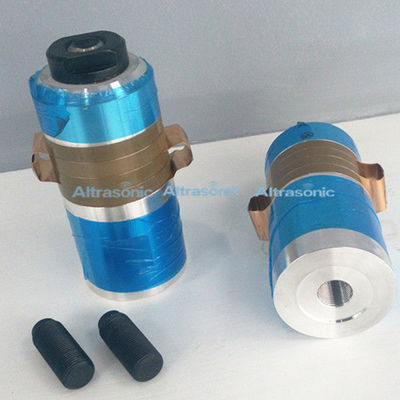

Large Image :  High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-7015-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month

High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz

Description
Product Name: High Frequency NTK Type 15Khz Ultrasonic Pizoelectric Welding Transducer Frequency: 15Khz
Ceramic Diameter: 70mm Power: 2600W
Type: Columnar Type Key: Ultrasonic Piezoelectric Transducer
Joint Bolt: M20*1.5
High Light:

high frequency ultrasonic transducer

,

portable transducer

High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Specifications:



Model HS-7015-4Z
Frequency 15khz
Output Power 3600watt
Joint Bolt M20*1.5
Ceramic Disc Diameter 70mm
Quantity of Ceramic Discs 4pcs
Capacitance 17-19nf
Amplitude 12um
Application Welding




Detailed Image:



High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz 0High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz 1



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Service:



We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.



High Frequency NTK Type Ultrasonic Piezoelectric Transducer Welding 15Khz 2
