High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer

China High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer supplier
High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer supplier High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer supplier High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer supplier High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer supplier

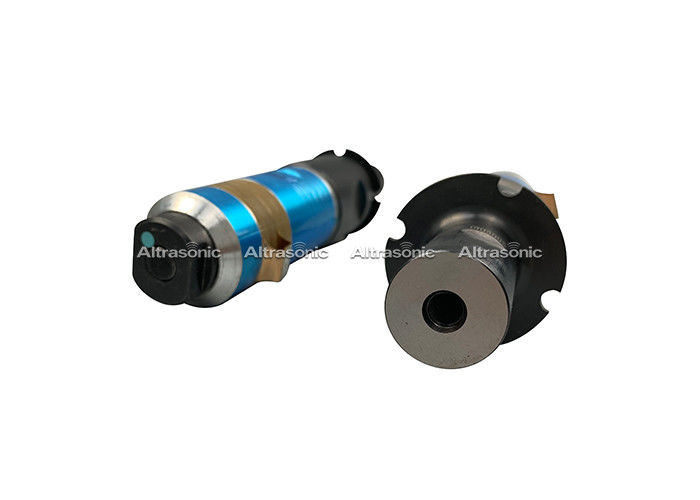

Large Image :  High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: High Power 20Khz 1500W Ultrasonic Welding Transducer With Booster Model Number: HS-5020-4Z
Output: Digital Sensor Ceramic Diameter: 50Mm
Qty Of Ceramic: 4Pcs Frequency: 20Khz



High power 20Khz 1500W Ultrasonic Welding Transducer with booster



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic chips sandwiched under pressure between two metal blocks. Between each chip is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Specifications:



Model HS-5020-4Z
Frequency 20 khz
Output power 1500W
Joint bolt M18*1.5
Ceramic Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11~17Nf
Amplitude 10 um
Application welding machine

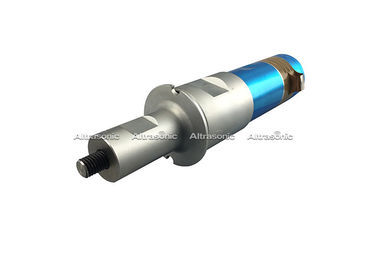

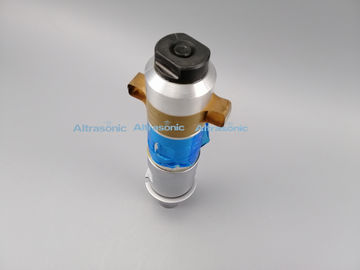

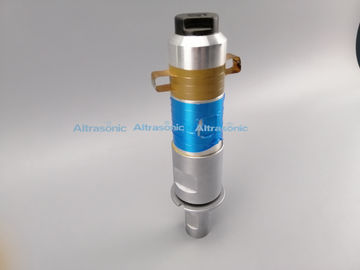

Detailed Image:



High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer



High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer





Competitive Advantage:



• Stable parameters

Easy matching with ultrasonic power supply

Superior raw materials

Accept OEM cooperation





Service:

We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.





High Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric TransducerHigh Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric TransducerHigh Power 1500W Ultrasonic Welding Transducer , Ultrasound Piezoelectric Transducer
