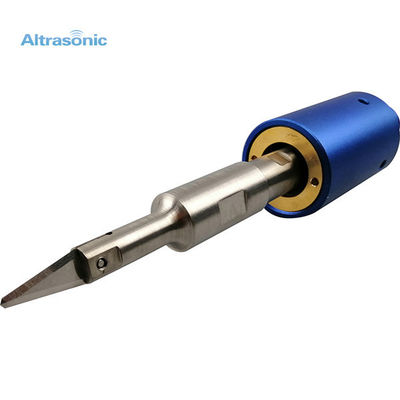

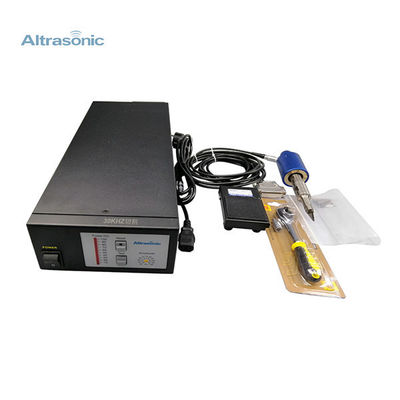

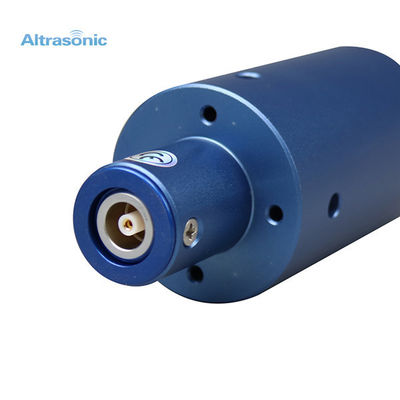

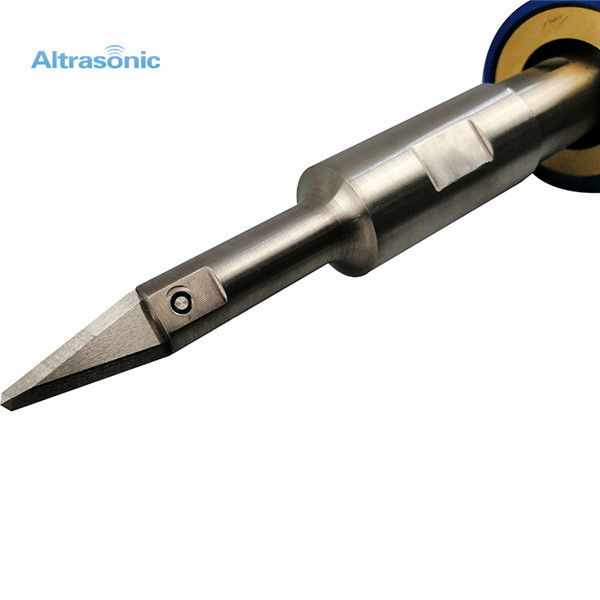

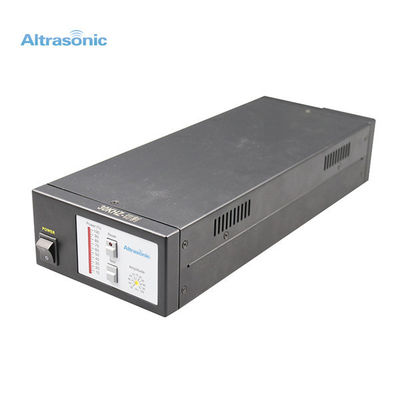

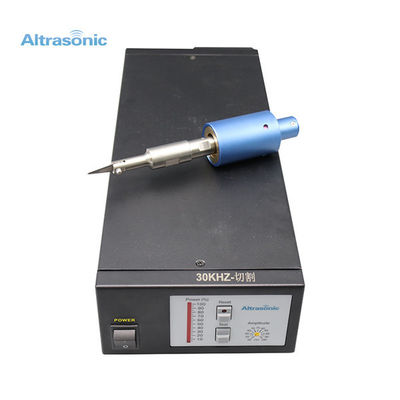

Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine

Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine
Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine
Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine

Large Image :  Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Delivery Time: 7 workdays
Payment Terms: T/T, Western Unionm,paypal

Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine

Description
Frequency: 30kHz Power: 500watt
Power Supply: Ultrasonic Digital Generator Cutting Thickness: 1-7mm
Voltage: 220V / 110V Name: Ultrasonic Fabric Cutting Machine
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices

Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine



Description:



Cutting tool in doing ultrasonic vibration, friction resistance is particularly small, cut material is not easy to adhere to the blade. The cutting effect of frozen, viscous and elastic materials is obvious. Especially effective for cutting foods, rubber, or objects that do not add pressure. At the same time of cutting, the cutting part has fusion effect. The cutting area is perfectly hemmed to prevent loose organization of the cut material (such as flash of textile material). The use of ultrasonic cutting machine can also be expanded, such as digging holes, shovel digging, scraping paint, carving, cutting and so on.


Specification:



Model HSPC30
Frequency 30kHz
Power 500watt
Power supply Digital generator
Size of cutter Blade replaceable
Voltage 220V / 110V
Accessory Foot switch1pc;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs


Competitive Advantages:


1.The use of high power ultrasonic transducer vibrating element, ensure the long time stable working
2.The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
3.Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
4.Suitable for any occasion, safe, harmless and easy to operate;
5.Suitable for cutting a variety of plastic materials, can cut any shape;
6.No rough edges, neat and beautiful incision



Application:



Ultrasonic Cutters can cut difficult-to-cut materials

♦ Carbon

♦ Prepreg materials

♦ Rubber

♦ Thermoplastics

♦ Leather

♦ Cloth

♦ Nonwoven fabric

♦ Paper

♦ Plastic sheet





Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine 0

Small Ultrasonic Plastic Cutter For Various Material , Ultrasonic Fabric Cutting Machine 1
