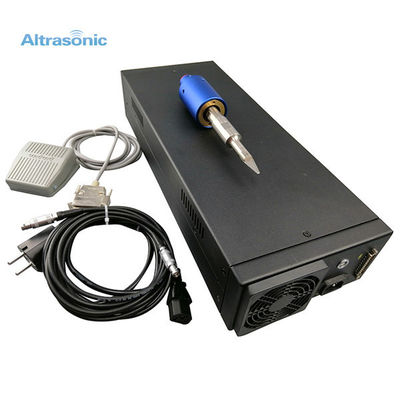

30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator

Certification
China Hangzhou Altrasonic Technology Co., Ltd certification
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator

30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator
30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator
30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator

Large Image :  30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Delivery Time: 7 workdays
Payment Terms: T/T, Western Unionm,paypal

30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator

Description
Frequency: 30kHz Power: 500watt
Power Supply: Ultrasonic Digital Generator Cutting Thickness: 1-7mm
Voltage: 220V / 110V Material Of Blade: Titanium Alloy
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices



30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator





Description:

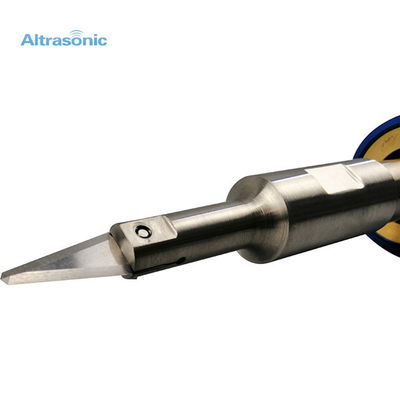

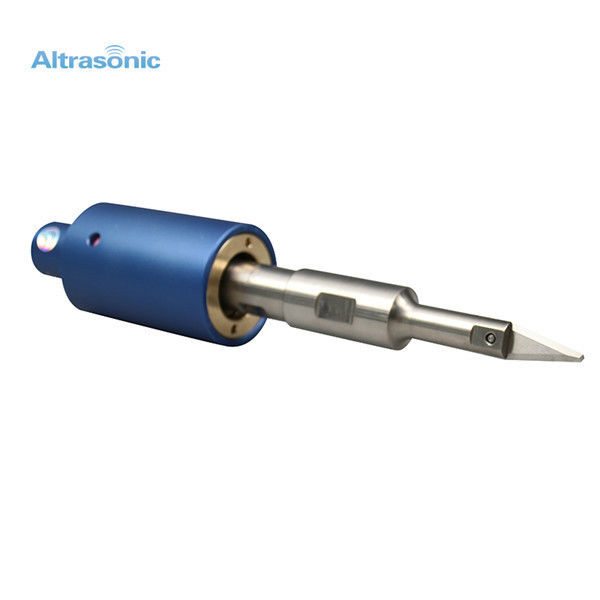

The ultrasonic plastic cutting knife is directly loaded into the ultrasonic energy on the cutter, the cutter will become a knife with ultrasonic cutting. In cutting materials, the materials are mainly softened and melted by ultrasonic energy. The cutting edge of the cutter plays the role of slit positioning, ultrasonic energy output, and separation of materials.


Specification:



Model HSPC30
Frequency 30KHZ
Output Power 500W

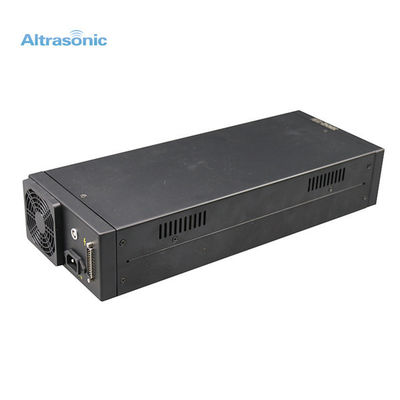

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

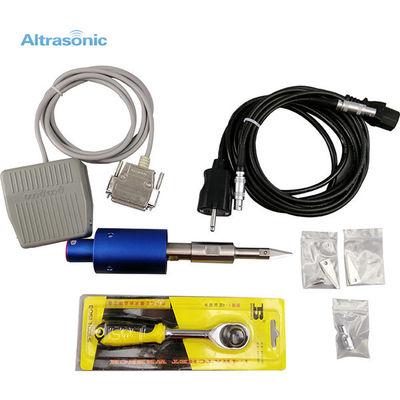

Accessory Foot switch1pc;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel



Competitive Advantages:


1. The use of high power ultrasonic transducer vibrating element, ensure the long time stable working
2. The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
3.Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
4.Suitable for any occasion, safe, harmless and easy to operate;
5.Suitable for cutting a variety of plastic materials, can cut any shape;
6.No rough edges, neat and beautiful incision



Application:



Ultrasonic Cutters can cut difficult-to-cut materials

♦ Carbon

♦ Prepreg materials

♦ Rubber

♦ Thermoplastics

♦ Leather

♦ Cloth

♦ Nonwoven fabric

♦ Paper

♦ Plastic sheet





30kHz Ultrasonic Cutter Cutting Blade Replaceable With Ultrasonic Digital Generator 0
