20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion

20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion
20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion

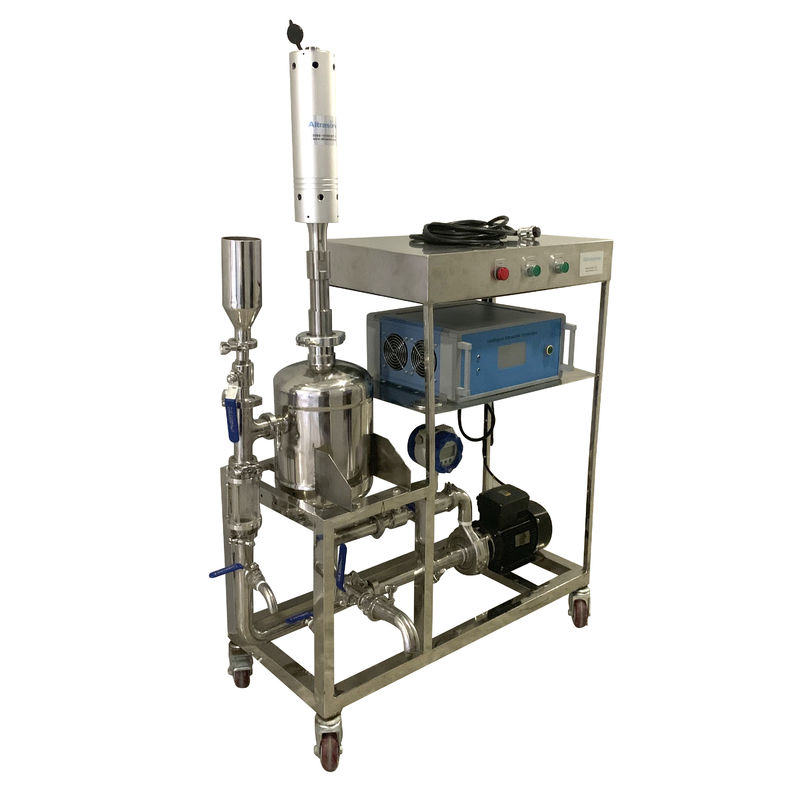

Large Image :  20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packed in wooden box
Delivery Time: 20 workdays
Payment Terms: T/T, Western Union,paypal

20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion

Description
Frequency: 20kHz Power: 1000-3000watt
Capacity: 5L Pressure: Normal
Max Temperature: 150℃ Material Of Tip Head: Titanium Alloy
High Light:

ultrasonic circular sonochemistry

,

ultrasonic sonochemistry 20Khz

,

ultrasonic sonochemistry For NanoEmulsion

20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion





Specifications:



Model HSS61B-ZB
Frequency 20khz
Output power 3000watt
Capacity 5L
Main advantages High output power and cavitation effect
Amplitude 80um
Power supply Digital Generator
Power range Power can be adjusted from 1% to 99%
Material of probe Special Titanium material
Application Dispersing, Mixing, Homogenizing, reduce the size of particles.






Competitive Advantage:



1. Core parts withTitanium materials.

2. Ultrasonic horn with different size and type for selection

3. Matching with digital generator, auto-tuning, auto search frequency

4. Power adjustable from 1% to 99%

5. Frequency range from 19khz to 21khz

6. Lab and bench-up scale for testing

  •

  • Main Characteristic:



    1. In full accordance with American Society for Testing Materials ASTM G32-06 standard design and manufacturing

    2. The sample amplitude can be adjusted by the user required

    3. Test fluid temperature can be real-time monitoring and adjustment, ensure the accuracy of the experiment.

    4. Sample test Interval can be adjusted by the user required

    5. Sample amplitude, frequency parameter can be Real-time display,Monitoring and adjustment

    6. Ultrasonic vibration stable, reliable, less fever heat.

    7. All of System parameters through standard testing, result of a measurement have Highly comparable.

  •

  • FAQ:



    1.Is the transducer water-cooled? If not what keeps it from over heating?

    It has water-cooled.

    2. What is the size of the reaction chamber?

    The size of the reaction chamber is 5L.

    3.Is the reaction camber doubled walled and water cooled?

    The outer wall of the reactor has two layers, and the middle layer of the wall needs to be added with water for water cooling.

    4.How do you control the pressure in the system?

    Our sonochenistry system is equipped with a CNC power source(digital generator), which can automatically track the frequency, protect the overcurrent voltage and adjust the power.

    5.Do you have a user manual you can send me? or videos?

    Yes,we will send you instruction manual and installation video.

    6.Does the system recirculate or is it single pass through?

    Can be recycled.

    5. Is the ultrasonic horn replaceable?

    The diameter of the tool head is 4.5-5cm and the length is about 50cm.

    It can be customized according to your requirements, but the length is shorter than this value, not too long.

    6. How deep does the horn go into the reaction chamber? Is it to the bottom?

    The horn does not penetrate deep into the bottom of the reactor, generally in the middle of the reactor.

  •

  • Deatil pictures:

  •

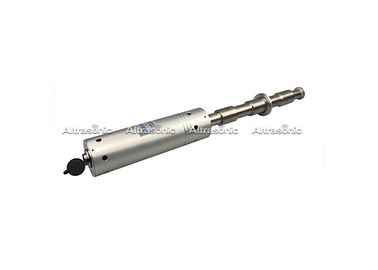

  • 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 0

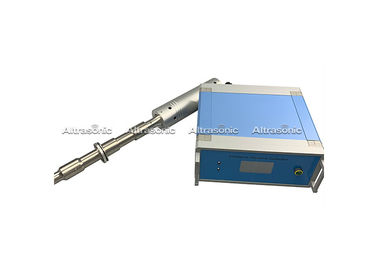

  • 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 1

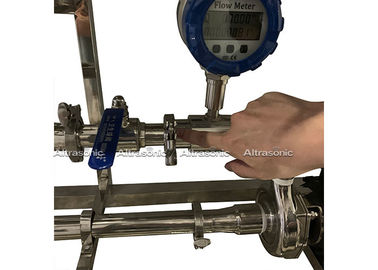

  • 20Khz Ultrasonic Circular Sonochemistry For NanoEmulsion 2
