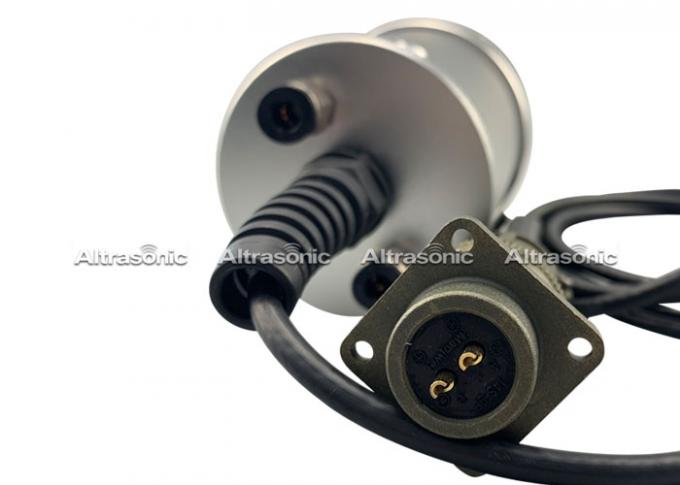

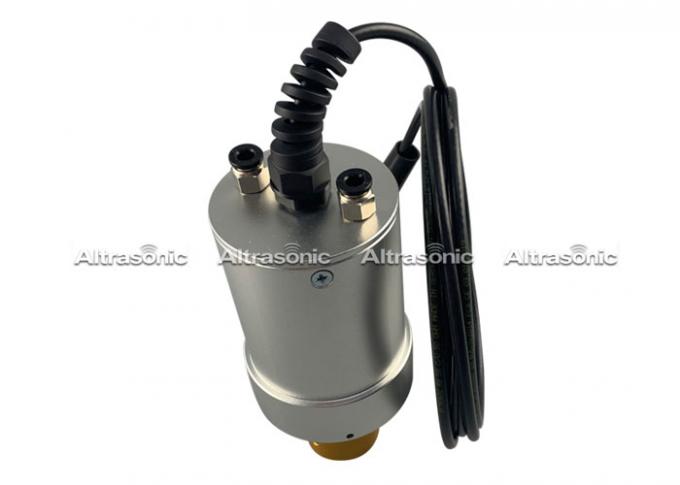

Replacement Dukane Type 20kHz Ultrasonic Welding Transducer

Replacement Dukane Type 20kHz Ultrasonic Welding Transducer
Replacement Dukane Type 20kHz Ultrasonic Welding Transducer Replacement Dukane Type 20kHz Ultrasonic Welding Transducer Replacement Dukane Type 20kHz Ultrasonic Welding Transducer Replacement Dukane Type 20kHz Ultrasonic Welding Transducer Replacement Dukane Type 20kHz Ultrasonic Welding Transducer Replacement Dukane Type 20kHz Ultrasonic Welding Transducer

Large Image :  Replacement Dukane Type 20kHz Ultrasonic Welding Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Delivery Time: 5 workdays
Payment Terms: T/T, Western Union,paypal

Replacement Dukane Type 20kHz Ultrasonic Welding Transducer

Description
Frequency: 20kHz Output Power: 1000-3000watt
Joint Bolt: 1/2-20 UNF Ceramic Disc Diameter: 50mm
Qty Of Ceramic Discs: 4pcs Capacitance: 11nf
Amplitude: 20 Um Application: Plastic Welding Machine
High Light:

high frequency ultrasonic transducer

,

portable transducer



Replacement Dukane Type 20kHz Ultrasonic Welding Transducer





Specifications:



Model HSD41S30
Frequency 20Khz
Output power 1000-3000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 20 um
Application Plastic welding machine



Applied Range:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


How the ultrasonic transducer works:

(1) Ultrasonic transducer: A device that converts high-frequency electrical energy into mechanical energy, generally with magnetostrictive and piezoelectric ceramics. The power is output to the ultrasonic generator, and then to the ultrasonic transducer, and ultrasonic waves are generally generated by the ultrasonic derivation and receiving device.

(2) The composition of the ultrasonic transducer: including the outer casing, the matching layer, that is, the acoustic window, the piezoelectric ceramic disk transducer, the backing, and the lead-out cable, which are characterized in that it further comprises an array receiver, which is led by the cable It consists of an energy device, a metal ring and a rubber gasket.

(3) The principle and function of ultrasonic transducer, ultrasonic transducer is resonant Yu Chaosheng frequency of piezoelectric ceramics, the material of the piezoelectric effect converts electrical signals into mechanical vibration. The ultrasonic transducer is an energy conversion device, its function is to convert the input electric power to mechanical power (ultrasonic) passed out again, part of the surface it consumes very little power. Types of ultrasonic transducers: can be divided into piezoelectric transducers, sandwich transducers, column transducers, inverted horn transducers.


Our Service:


Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.





Replacement Dukane Type 20kHz Ultrasonic Welding Transducer 0

Replacement Dukane Type 20kHz Ultrasonic Welding Transducer 1

Factory workshop:





Replacement Dukane Type 20kHz Ultrasonic Welding Transducer 2



Replacement Dukane Type 20kHz Ultrasonic Welding Transducer 3
