35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power

China 35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power supplier
35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power supplier 35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power supplier 35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power supplier 35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power supplier

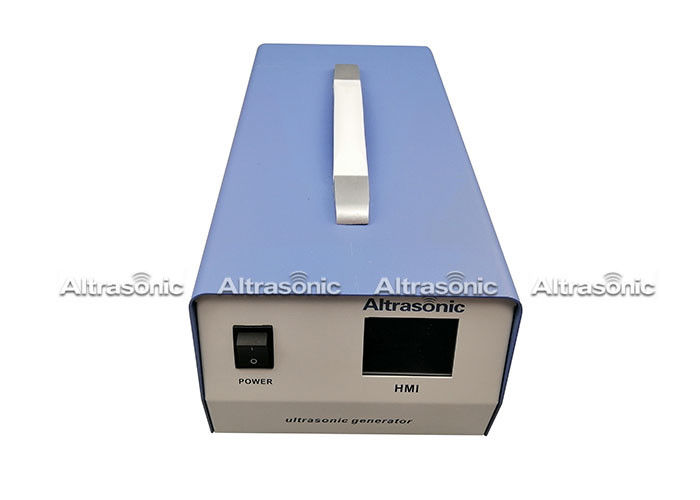

Large Image :  35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-DG35

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000 piecs/month
Contact Now
Detailed Product Description
Frequency: 35kHz Output Power: 500watt
Currents: 10A Cycle Rate: 200CPM
Voltage: 220V 50/60HZ Moisture: ≤85%RH



Power Supply 35kHz Ultrasonic Digital Generator High Power





Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy, even reach 70khz. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical sonochemistry .



Specifications:



Model HS-DG35
Frequency 35khz
Output power 500watt
Frequency tuning method Auto tuning
Voltage 220V 50/60HZ
Currents 10A
Environment temperature 5-50℃
Cycle Rate 200CPM
Moisture ≤85%RH



Competitive Advantage:


1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.

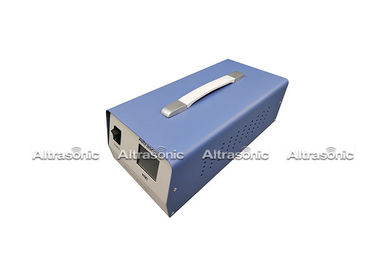

35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power

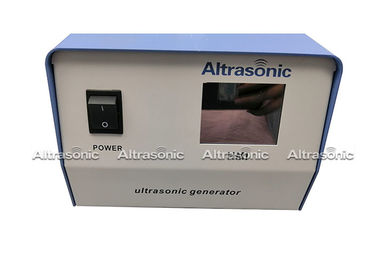

35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power





Package pictures:

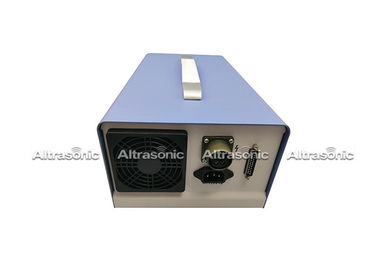

35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power

35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power

Factory workshop:



35kHz Ultrasonic Power Supply , Ultrasonic Digital Generator High Power
