Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder
Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder

Large Image :  Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G-DB30
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000 piecs/month

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder

Description
Frequency: 30kHz Output Power: 2000watt
Output Current: Controllable Frequency Tuning Method:: Auto Tuning
Application: Welding
High Light:

ultrasonic generator

,

ultrasound generator

Portable Ultrasonic 30Khz Generator High Stability Frequency Auto Tuning for Plastic Welder





Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.



Specifications:



Model HS-G-DB30
Frequency 30khz
Output power 2000W
Working type Continous mode or Pulse mode optional
Voltage 220V 50/60HZ
Temperature ≤300℃
Moisture ≤85%RH


Competitive Advantage:

1. The use of high-quality electronic components assembly.
2. Advanced and reliable protection circuit makes the reliability is greatly improved.
3. FM and frequency automatic compensation, frequency of the digital display.
4. Frequency deviation, working current two meter indication and protection function.
5. According to the customer request interface plug.
6. Has the advantages of simple structure, easy to repair, cheap.

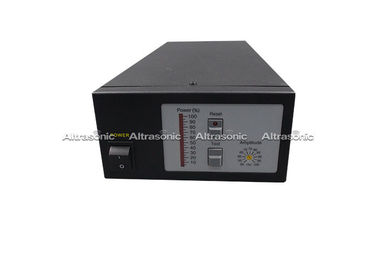

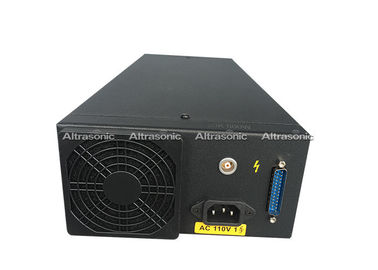

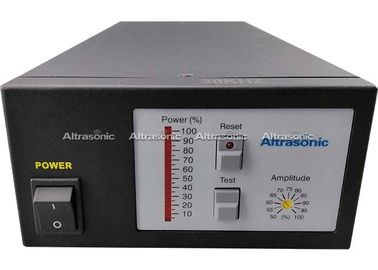

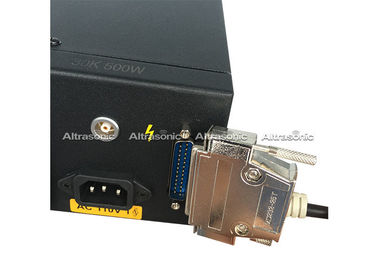

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder 0

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder 1

Package pictures:

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder 2

Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder 3

Factory workshop:



Portable Ultrasonic Power Supply High Stability Frequency Auto Tuning For Plastic Welder 4
