35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding

35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding
35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding 35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding 35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding

Large Image :  35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSF57B-CB
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding

Description
Product Name: Ultrasonic Sealing Machine Model Number:: HSF57B-CB
Frequency: 35Khz Power: 800
Install Bolt: M8 Allowable Rotation Speed: 100r/min.
Rotary Welding Horns Width: 12mm Power Adjust Method: File Or Continuous
Material: Titanium Application: Lace Clothing, Ribbon,trim,Filter, Lacing And Quilting,decoration Products
High Light:

ultrasonic sealer

,

ultrasonic sealing equipment









35Khz Ultrasonic Sealing Machine With 12mm Titanium Wheel For Filter Welding





Description:



With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.



Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.



Specification:



Model HSF57B-CB
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min.
Install Bolt M8,4 pcs



Advantages:



1. There’s no fog and spark in produce processing, won’t cause damage to fabric edge,

and also can avoid deckle edge.

2. Chang of the ultrasonic cutting die is very easy, and the design of themoulds can

also made according to customer’s requirement.

3. Without pre-heating, and continuous operation is possible.

4. Machines can be combined to one set of equipments in order to sew large width

products once, for instance, guilt cover, gingham, etc.

5. The cutting moulds (cutting die) that be made of special alloy steel which has been

treated with special heat treatment technology, so the moulds with high wear resistance

and gains a longer service life.



Applications:



Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.



Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.



Why choose us?

1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.
2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.
4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.
5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.
6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.

Shipping and payment:

Shipping: DHL,TNT,FEDEX,UPS Express etc.
Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.

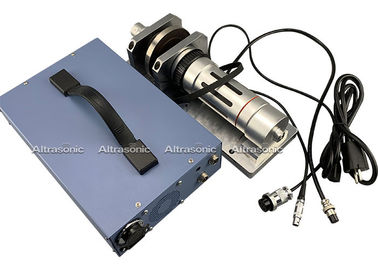

35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding 0

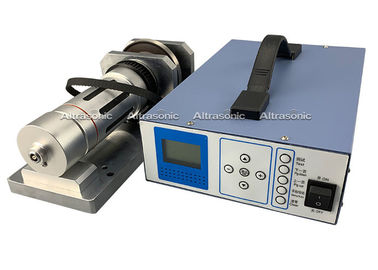

35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding 1

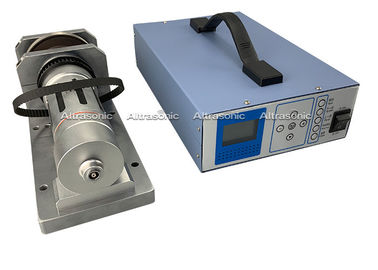

35 Khz Ultrasonic Sealing Technology With 12mm Titanium Wheel For Filter Welding 2
