Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons
Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons

Large Image :  Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT30-D
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons

Description
Product Name: Ultrasonic Spot Welding Machine Model Number:: HS-PT30-D
Frequency: 30Khz Power: 500watt
Frequency Tuning Method: Auto Tuning Horn: Working Surface Diameter 9-10mm , Steel Material
Power Adjustable: 30%-99% Net Weight: 10kgs
Application: Auto Parts Welding Welding Type: Hand-held Operation Or Mounting On The Machine
High Light:

portable spot welding machine

,

sonic welding machine

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons



Description:



Portable ultrasonic spot welding machine is an assembly technique for joining two thermoplastic components at localised points without the necessity for preformed holes or an energy director. Spot welding produces a strong structural weld and is particularly suitable for large parts, sheets of extruded or cast thermoplastic, and parts with complicated geometry and hard-to-reach joining surfaces.



Specification:


Model HS-PT30-D
Frequency 30khz
Output power 500watt
Frequency tuning method Auto tuning
Horn Working surface diameter 9-10mm , steel material
Power adjustable 30%-99%
Net weight 10kgs
Application Auto parts welding
Welding type hand-held operation or mounting on the machine



Applications:

1. Plastic hardware riveting, welding, embossing, folder location technology, decorative ribbons, spot welding, rivet welding etc..
2. Electronic and electrical appliances, auto parts, clothing, packaging, textile industry, environmental protection industry, medical equipment, toy industry, communications equipment and other industries.
3. Even it has large difference physical properties between each materials, it can be a good welding. It also besuitable for metal foil, flaments, tiny device and thickness disparity, multilayer sheet metal welding.

Innovation:

1. The product design is exquisite, reasonable structure, convenient hand-held operation.
2. The digital power supply and installation of professional cooling system, enhance the stability of equipment.
3. Can be used for thermoplastic plastic welding, riveting and metal parts and plastic parts of the mosaic and pressing process. It can completely replace the process of organic melting agent paste.
Has the advantages of low energy consumption, high efficiency, no deformation, no pollution, welding firm, convenient operation etc..
4. Not only can be used to weld metal, hard plastic, can also be processed fabrics and films. According to the welding machine product riveting point size and welding requirements of portable ultrasonic welding, ultrasonic welding head replacement of different, is quick and convenient, and the cost is relatively special automobile door ultrasonic welding machine is much lower, easy to meet the needs of customers.

Competitive Advantage:

1. Fast welding speed, usually can be completed within 1 seconds.
2. High welding strength, good sealing performance, can maintain and material strength.
3. Effective energy saving, healthy environmental protection.



  Gun Type Cylinder Type
Model HS-35G HS-28G HS-28G HS-20G HS-28C HS-28C HS-28C
Frequency 35k 28k 28k 20k 28k 28k 28k
Power 700 300&500 400&700 900 300&500 400&700 500&800
Horn ≤10mm ≤10mm ≤12mm ≤13mm ≤8mm ≤12mm ≤12mm
Housing Diameter 51mm 64mm 40mm 45mm 60mm
Handle Size 100mm×45mm×32mm —— —— ——
Weight Without Wire and Horn 0.6kg 1.3kg 1.3kg 1.5kg 0.6kg 0.6kg 1.3kg
Digital generator
Analog generator



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.

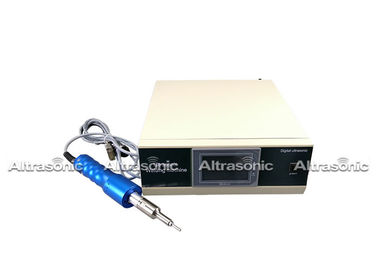

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons 0

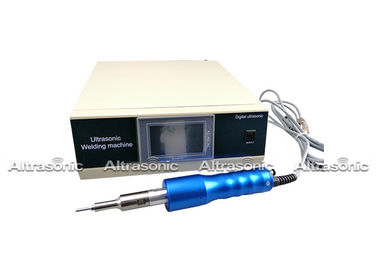

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons 1

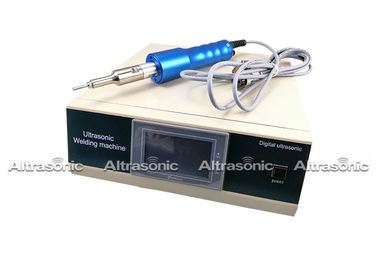

Mini Fast Speed Ultrasonic Spot Welding Machine For Decorative Ribbons 2
