40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade

China 40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade supplier
40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade supplier 40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade supplier 40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade supplier

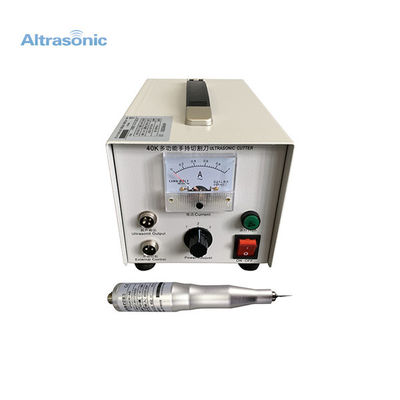

Large Image :  40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Cutting Machine Model Number:: HSQ40B-AB
Frequency: 40Khz Power: 100W
Voltage: 220V / 110V Handle: Φ32×170
Length Of Cable: 3M Outer Skin: Aluminum
Material Of Blade: Titanium Alloy, Stainless Steel Generator: Analog Generator, 155 X 265 X 170mm




40Khz Portable Ultrasonic Cutting Machine With Replaceable Blade





Description:



Ultrasonic cutting machine uses the energy of ultrasonic waves to melt the local heating of the material to be cut, so as to achieve the purpose of cutting the material.

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.



Specification:



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel





Competitive Advantage





♦ Environment-friendly (No noise, no smoke, no air contamination)

Smooth cutting of difficult-to-cut materials

Small hand-held size(can be attached to automotive machinery arms)

No special installation equipment

The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

Cutting all kinds of ordinary tool to cut products, solve production problems

Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool

Installation, easy to use, almost does not change the original cutting process

Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special

Can use air-cooling, water-cooling design, adapt to various working conditions and environment



The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material Thickness Cutting speed
ABS/PE 2mm 4mm/s
3mm 2mm/s
4mm 1mm/s
PVC 2mm 15mm/s
Asian gram force 2mm 3mm/s
Non-woven fabric 3mm 2mm/s
Chloroprene rubber 5mm Easy to cut
Corrugated paper 8mm Easy to cut
Plywood 2.5mm Easy to cut
Glass fiber resin 1.5mm Easy to cut
Thick cardboard 1.5mm Easy to cut
Linen 2mm Easy to cut
Urethane 3mm Easy to cut
Nylon/PP 3mm

Easy to cut



Typical materials processed



  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials



FAQ:





1. What’s the difference between Ultrasonic cutting and the traditional cutting?

The traditional cutting is the use of cutting tools with sharp edge press to cutting material, this pressure is large and concentrated in the edge. When the material being cut, its molecular combination was cut off, so it is easy cause crumbs and broken edges.

However, ultrasonic cutting is the use of wave energy, will be cutting the material of the local heating and melting, so as to achieve the purpose of catting materials.



2. What is the blade life?

The blade life differs according to material, shape of the work-piece, and processing method. The blade should be changed once every few months when cutting materials with small wear rates, such as rubber. The blade should be changed once every few days when cutting materials with large wear rates, such as materials containing glass fiber.



3. What is required for running and maintenance?

Blades, blade holders, and square-headed screws are expendables. The blade should be changed when it is broken or worn. We recommend changing the blade holder once every three months−two years, depending on usage. The blade attachment screw should be changed when the blade is changed, or at least once a month. For maintenance, the slit part of the blade holder should be cleaned when the blade in changed, and the oscillator filter should be cleaned once a month.



4. Is continuous use possible?

When general ultrasound processing tools are continuously used for a long period of time, heat accumulates in the transducer and the jointing section of the blade and results in malfunction. Altrasonic’s transducer can be continuously used for a long period of time by supplying air for cooling.

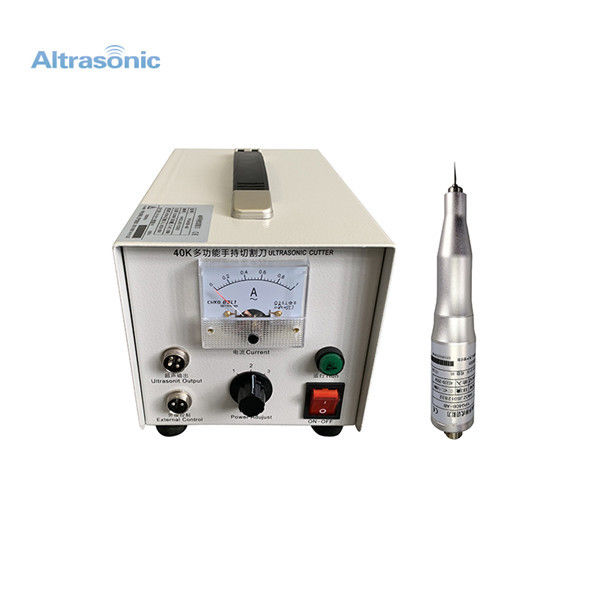

40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade

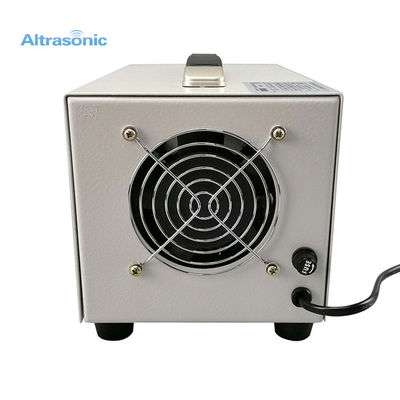

40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade







40Khz Frequency Portable Ultrasonic Cutting Machine With Replaceable Blade
