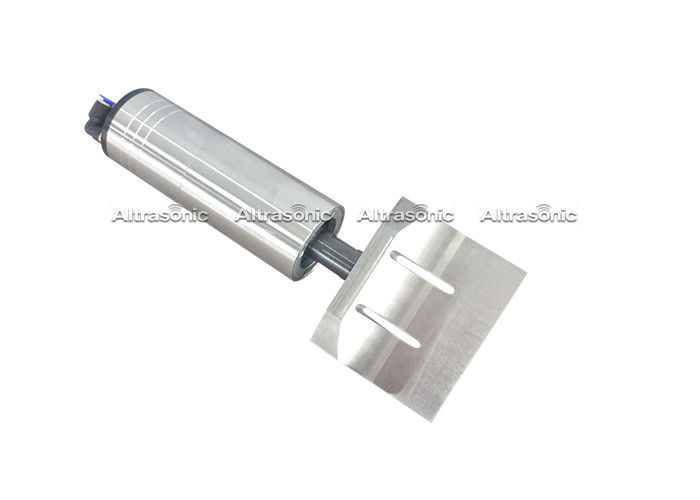

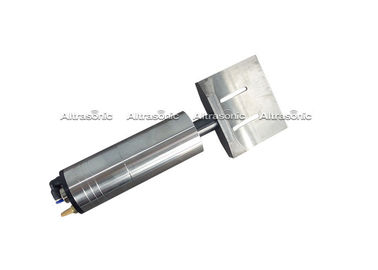

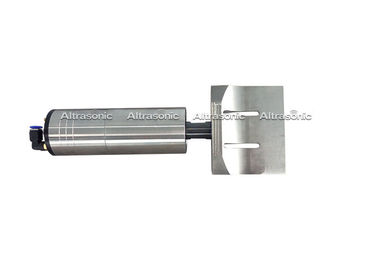

500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge

China 500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge supplier
500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge supplier 500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge supplier 500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge supplier

Large Image :  500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSFC82

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Cutting Machine Model Number:: HSFC82
Frequency: 40Khz Power: 500W- 800W
Input: AC110-240V, 50/60Hz Cable Length: 2M Or Customized
Power Controller: Stepping Or Continuous Accessories: Foot Switch, Additional Blade
Material Of Cutting Head: Aluminum Alloy, Stainless Steel, Titanium Alloy, Alloy Steel Machine Wight: 4KGS-16KGS




500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge





Description:



The principle of ultrasonic rubber cutting knife totally different from the traditional sense of the cutting. By using ultrasonic energy, the material will be cut by locally heating, so as to achieve the purpose of cutting the rubber. Ultrasonic cutting does not require a sharp edge and don’t need a lot of pressure, so it will not cause damage of vulcanization.



The form is in longitudinal slip back and forth movement. Contractions in the frequency of the equivalent of driving power supply for the high frequency alternating current frequency.The role of the booster is a fixed the ultrasonic vibration system, the second is to adjust the transducer output amplitude.Tool head (blade) on the one hand, enlarge the amplitude, focused ultrasound. On the other hand is the output of ultrasonic, like blade of cutting knife, focused ultrasound energy input to the cutting parts of materials.



Ultrasonic rubber cutting knife basic composition is ultrasonic transducer, the amplitude, tool head (blade), drive power supply. Mains voltage is converted into a high-frequency alternating current by ultrasonic generator, providing to an ultrasonic transducer. Ultrasonic transducer is equivalent to an energy conversion device, it can be the input electrical energy into mechanical energy, called ultrasound.



500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge




Specification:



Frequency 40Khz
Power 500W- 800W
Input AC110-240V, 50/60Hz
Power Controller Stepping or continuous
Material Of Cutting Head Aluminum alloy, stainless steel, titanium alloy, alloy steel.
Machine Wight 4KGS-16KGS
Accessories Foot switch, additional blade
Cooling Device Compressed air mouth can be installed.
Cable Length 2M or customized
Foot Switch Available



Applications:


● Tire crown;
● Nylon
● Steel ribbon plastic layer;
● Nylon cord;
● Lined
● Sidewall
● Apex;
● Triangular circle



Competitive Advantages:



1. High cutting accuracy and no deformation of glue

2. Good finish of cutting surface and good bonding performance

3. Easy to be used in automatic production

4. Fast speed, high efficiency and pollution-free



Why choose Altrasonic?



1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

2. Purchase process is very convenient and efficient, we will deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.

3. Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.







500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge

500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge



500 W 82mm Ultrasonic Rubber Cutter With Smooth Traceless Cutting Edge
