Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily

Certifications
Good quality Ultrasonic Converter for sales
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily

China Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily supplier
Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily supplier Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily supplier Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily supplier

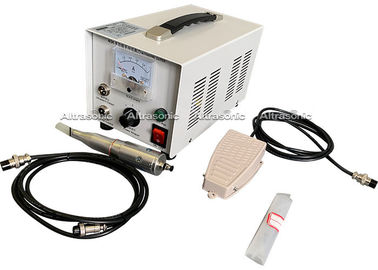

Large Image :  Easy Use High Performance Ultrasonic Cutting Machine For Cutting Golf Ball Easily

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Cutting Machine Model Number:: HSQ40B-AB
Frequency: 40Khz Power: 100W
Voltage: 220V / 110V Handle: Φ32×170
Length Of Cable: 3M Outer Skin: Aluminum
Material Of Blade: Titanium Alloy, Stainless Steel Generator: Analog Generator, 155 X 265 X 170mm




100W 40Khz Ultrasonic Cutting Machine For Cutting Golf Ball Easily





Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.


Specification:



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



The difference between traditional cutting and ultrasonic cutting


Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.



Competitive Advantage



♦ Environment-friendly (No noise, no smoke, no air contamination)

Smooth cutting of difficult-to-cut materials

Small hand-held size(can be attached to automotive machinery arms)

No special installation equipment

The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

Cutting all kinds of ordinary tool to cut products, solve production problems

Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool

Installation, easy to use, almost does not change the original cutting process

Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special

Can use air-cooling, water-cooling design, adapt to various working conditions and environment





Typical materials processed



  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials



The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material Thickness Cutting speed
ABS/PE 2mm 4mm/s
3mm 2mm/s
4mm 1mm/s
PVC 2mm 15mm/s
Asian gram force 2mm 3mm/s
Non-woven fabric 3mm 2mm/s
Chloroprene rubber 5mm Easy to cut
Corrugated paper 8mm Easy to cut
Plywood 2.5mm Easy to cut
Glass fiber resin 1.5mm Easy to cut
Thick cardboard 1.5mm Easy to cut
Linen 2mm Easy to cut
Urethane 3mm Easy to cut
Nylon/PP 3mm

Easy to cut





Why choose us?



1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.



Shipping and payment:



Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.
