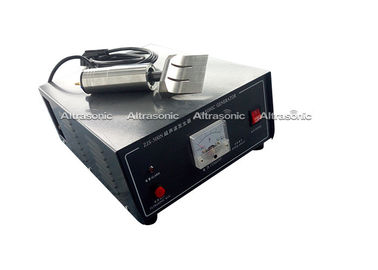

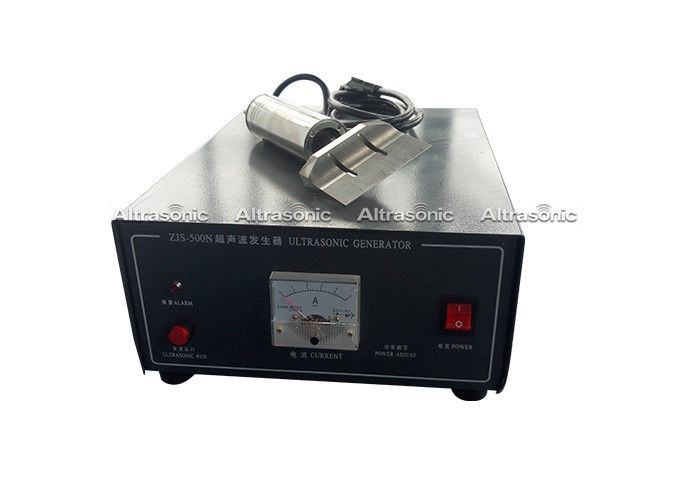

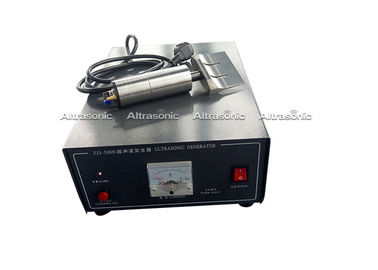

Desktop 40Khz Ultrasonic Rubber Cutter Machine For Titanium Alloy Sonotrode

40Khz Ultrasonic Rubber Cutting Machine For Titanium Alloy Sonotrode




Description:

The principle of ultrasonic rubber cutting knife totally different from the traditional sense of the cutting. By using ultrasonic energy, the material will be cut by locally heating, so as to achieve the purpose of cutting the rubber. Ultrasonic cutting does not require a sharp edge and don’t need a lot of pressure, so it will not cause damage of vulcanization.

Ultrasonic rubber cutting knife basic composition is ultrasonic transducer, the amplitude, tool head (blade), drive power supply. Mains voltage is converted into a high-frequency alternating current by ultrasonic generator, providing to an ultrasonic transducer. Ultrasonic transducer is equivalent to an energy conversion device, it can be the input electrical energy into mechanical energy, called ultrasound.

The form is in longitudinal slip back and forth movement. Contractions in the frequency of the equivalent of driving power supply for the high frequency alternating current frequency.The role of the booster is a fixed the ultrasonic vibration system, the second is to adjust the transducer output amplitude.Tool head (blade) on the one hand, enlarge the amplitude, focused ultrasound. On the other hand is the output of ultrasonic, like blade of cutting knife, focused ultrasound energy input to the cutting parts of materials.


Specification:

Competitive Advantages:

1. Products advantage, all our core parts are imported, which greatly increase the usage life. and the cutting is no crumbs or broken edges, non-stick, smooth and neat cut.

2. Cost-benefit system, we work out the best solution with reasonable price for our customer after testing. we also offer one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

3. The purchase process is very convenient and efficient, we deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.

4. Strict quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.

5. We offer free test for customers and also have oversea service: we have sub company in Australia, and agent in India,Malaysia and Europe.

6. We are flexiable for customize individual program as we have a strong technical team to support.

Applications:

1. Thermal plastic gate cutting and flush cutting.

2. Rubber, PVC, leather, plastic, cardboard, acrylic, polyprolene cutting

3.Tape and film cutting .

4. Frozen vegetable&meat cutting;

5. Package material cutting

6. The automotive industry cutting

Why choose Altrasonic?

1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.

Shipping and payment:

Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.
