30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber

30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber
30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber 30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber 30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber

Large Image :  30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber

Description
Product Name: Ultrasonic Cutting Machine Model Number:: HSPC30
Frequency: 30Khz Power: 200W
Voltage: 220V / 110V Handle: Φ44×220
Length Of Cable: 3M Outer Skin: Aluminum
Material Of Blade: Titanium Alloy, Stainless Steel Generator: Digital Generator, 452 X 180 X 100mm
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices




30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber



Description:



Ultrasonic cutting knives are a type of equipment that uses wave energy for cutting. Its biggest feature is that cutting does not use cutting edges. Or, instead of the cutting edge in the traditional sense. Conventional cutting uses a sharp-edged tool to press against the material being cut. This pressure is concentrated at the cutting edge, and the pressure is very large, exceeding the shear strength of the material being cut. The molecular combination of the material is pulled apart and cut. Since the material is pulled hard by the strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself must withstand relatively high pressure. It is not good for soft and elastic materials, and it is more difficult for viscous materials.

Ultrasonic cutting also has a great advantage in that it has a fusion at the cutting point while cutting. The cutting site is perfectly sealed to prevent loose tissue (such as textile material flash).


Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade Titanium alloy, stainless steel



Working Princple:



The principle of an ultrasonic cutter is completely different from that of a conventional one. It uses the energy of ultrasonic waves to melt the local heating of the material to be cut, so as to achieve the purpose of cutting the material. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause chipping or breakage of the material to be cut. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.



Application range:



Ultrasonic cutting machine is suitable for: raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit board, industrial, jewelry, plastic products processing, food processing, printing industry, automotive industry. Natural fiber segmentation (divided into fine lines), synthetic fiber deep digging (multilayer circuit cutting), plastic casing processing, thin synthetic resin lacquer (suitable for large areas) All types of paper and base film origin (China) or handheld Cutting machine and so on. The use of ultrasonic cutting machines can also be extended, such as digging holes, shovel digging, scraping paint, engraving, slitting and so on.



The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material Thickness Cutting speed
ABS/PE 2mm 4mm/s
3mm 2mm/s
4mm 1mm/s
PVC 2mm 15mm/s
Asian gram force 2mm 3mm/s
Non-woven fabric 3mm 2mm/s
Chloroprene rubber 5mm Easy to cut
Corrugated paper 8mm Easy to cut
Plywood 2.5mm Easy to cut
Glass fiber resin 1.5mm Easy to cut
Thick cardboard 1.5mm Easy to cut
Linen 2mm Easy to cut
Urethane 3mm Easy to cut
Nylon/PP 3mm

Easy to cut





FAQ:



1. Can it be installed on my present lines?

Yes, ultrasonic cutting and processing equipment can be installed easily. Altrasonic equipment can be as simple as removing the conventional knife and replacing it with a plate to which the ultrasonic knives are attached. Another option is replacing the existing cutting/slitting station with a gantry system that straddles the conveyor you now have.

2. Is the equipment reliable?

Altrasonic Ultrasonics technology has been continuously improved over our 10 years in the business. All equipment and tooling designs undergo many months of reliability testing before being approved for applications.



3. What materials can/cannot be cut by ultrasonic cutters?



Materials that can be cut by ultrasonic cutters are thermoplastic resins, plastics, rubber, cloths, paper, corrugated cardboard, foamed materials, and foods. Sections obtained by ultrasonic cutters are much smoother than those obtained by ordinary cutters. Cutting with less workload can be realized.



Why choose us?



1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.



Shipping and payment:



Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.

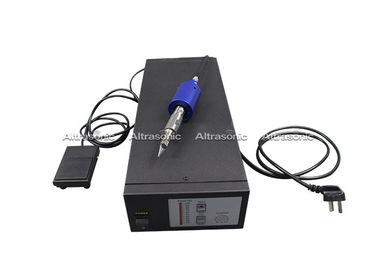

30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber 0

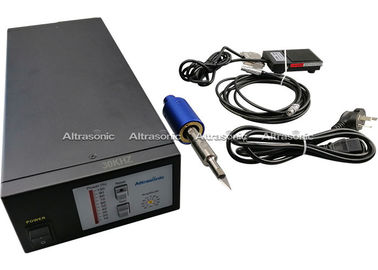

30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber 1

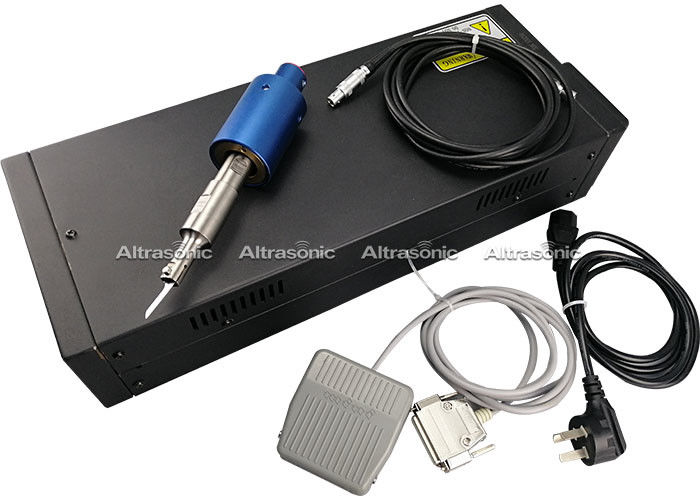

30Khz Ultrasonic Cutting Machine With Aluminum Housing For Carbon Fiber 2
