Product Details:
|
| Product Name: | Ultrasonic Cutting Machine | Model Number:: | HSPC30 |
|---|---|---|---|
| Frequency: | 30Khz | Power: | 200W |
| Voltage: | 220V / 110V | Handle: | Φ44×220 |
| Length Of Cable: | 3M | Outer Skin: | Aluminum |
| Material Of Blade: | Titanium Alloy, Stainless Steel | Generator: | Digital Generator, 452 X 180 X 100mm |
| High Light: | ultrasonic cutting knife,ultrasonic cutting devices |
||

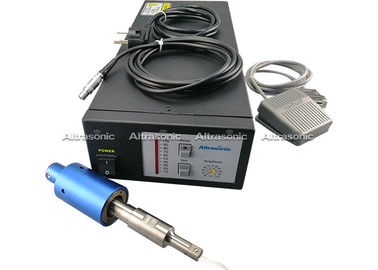

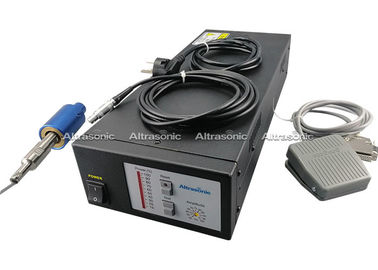

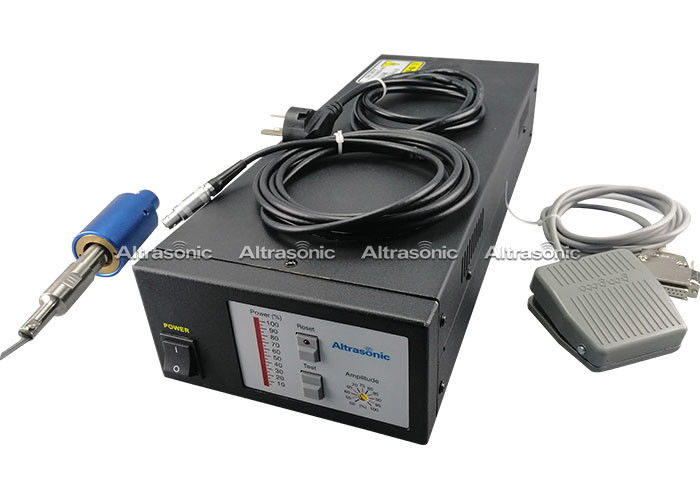

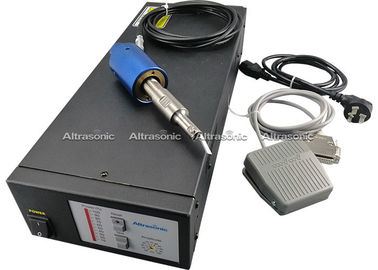

30Khz Easy Operation Ultrasonic Cutting Machine For Mesh Dryer Fabrics
Description:
Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting/sealing head. No other cutting/sealing methods can compare to this edge sealing ultrasonic cutting technology.
Ultrasonic cutters are designed to give the best edge seal on all fabrics without having to adjust the machine for different fabrics or thickness.
Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.
Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.
A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.It leads to higher productivity and less downtime.
Specification:
| Model | HSPC30 |
| Frequency | 30KHZ |
| Output Power | 200W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | Titanium alloy, stainless steel |
The difference between traditional cutting and ultrasonic cutting
Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.
Compared to conventional methods, ultrasonic cutting delivers:
♦ Improved cut quality for carpets, headliners and plastics
♦ Lower initial investment and operating costs
♦ Reduced floor space requirements
♦ A greener footprint with less noise and waste
FAQ:
Yes, ultrasonic cutting and processing equipment can be installed easily. Altrasonic equipment can be as simple as removing the conventional knife and replacing it with a plate to which the ultrasonic knives are attached. Another option is replacing the existing cutting/slitting station with a gantry system that straddles the conveyor you now have.
Altrasonic Ultrasonics technology has been continuously improved over our 10 years in the business. All equipment and tooling designs undergo many months of reliability testing before being approved for applications.
3. What materials can/cannot be cut by ultrasonic cutters?
Materials that can be cut by ultrasonic cutters are thermoplastic resins, plastics, rubber, cloths, paper, corrugated cardboard, foamed materials, and foods. Sections obtained by ultrasonic cutters are much smoother than those obtained by ordinary cutters. Cutting with less workload can be realized.
Why choose us?
1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.
2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.
4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.
5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.
6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.
