High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life

China High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life supplier
High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life supplier High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life supplier High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life supplier

Large Image :  High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Cutting Machine Model Number:: HSPC30
Frequency: 30Khz Power: 200W
Voltage: 220V / 110V Handle: Φ44×220
Length Of Cable: 3M Outer Skin: Aluminum
Material Of Blade: Titanium Alloy, Stainless Steel Generator: Digital Generator, 452 X 180 X 100mm




30Khz High Precision Ultrasonic Cutting Machine With Titanium Blade





Description:



Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting/sealing head. No other cutting/sealing methods can compare to this edge sealing ultrasonic cutting technology.

Ultrasonic cutters are designed to give the best edge seal on all fabrics without having to adjust the machine for different fabrics or thickness.

Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.It leads to higher productivity and less downtime.


Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade Titanium alloy, stainless steel



Principle:



The ultrasonic cutting machine is composed of Ultrasonic transducer, ultrasonic booster, ultrasonic cutting knife and ultrasonic generator.





♦ Ultrasonic generator



It converted the high frequency high voltage AC current to the ultrasonic transducer. Ultrasonic transducers are equivalent to energy conversion devices that convert the input power into mechanical energy, ie, ultrasonic waves.



♦ Ultrasonic booster



It magnifies the output amplitude of the ultrasonic transducer.



♦ Ultrasonic cutting knife



Further amplify the amplitude, focusing ultrasound energy to the cutting part of the material. This cutting site is effected by the huge ultrasonic energy, and becomes softening, melting, strength greatly reduced instantly. So only need to impose a small force to achieve the purpose of cutting materials



Ultrasonic Cutters can cut difficult-to-cut materials:



• Carbon

• Prepreg materials

• Rubber

• Thermoplastics

• Leather

• Cloth

• Nonwoven fabric

• Paper

• Plastic sheet





Why choose us?



1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.



Shipping and payment:



Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.

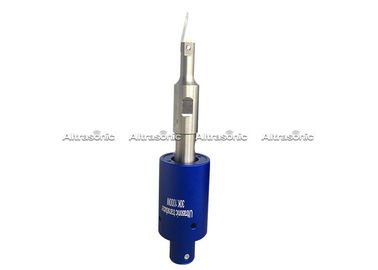

High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life

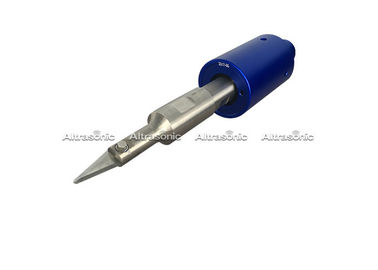

High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life

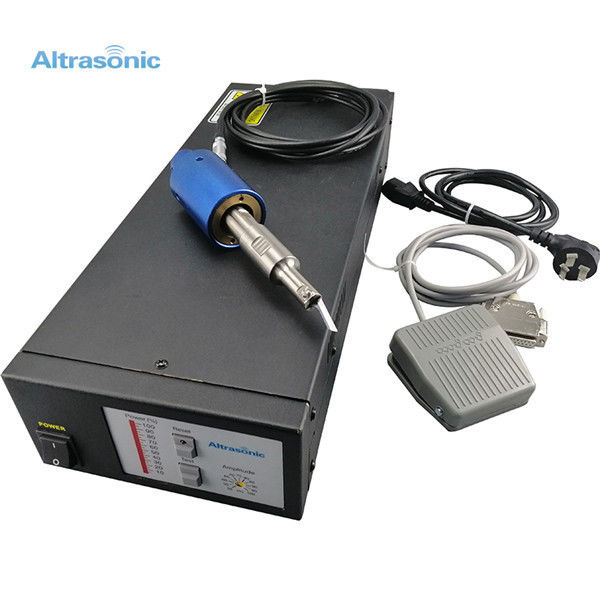

High Precision Ultrasonic Cutting Machine , Ultrasonic Cutting Equipment With Long Life
