High Speed Slicing Ultrasonic Food Cutter Device For Frozen Cheese Or Cake

China High Speed Slicing Ultrasonic Food Cutter Device For Frozen Cheese Or Cake supplier

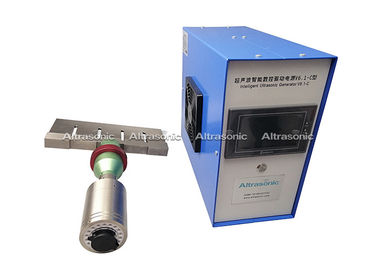

Large Image :  High Speed Slicing Ultrasonic Food Cutter Device For Frozen Cheese Or Cake

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSFC305

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Food Cutting Machine Model Number:: HSFC305
Frequency: 20Khz Power: 800W
Input: AC110-240V, 50/60Hz Length Of The Blade: 255mm/305mm
Machine Wight: 15~18KGS Material Of Cutting Head: Stainless Steel, Titanium Alloy, Alloy Steel.
Cable Length: 3M Or Customized Accessories: Foot Switch, Additional Blade





High Speed Slicing Ultrasonic Food Cutting Machine For Frozen Cheese or Cake






Description:



Ultrasonic food processing involves a vibrating knife producing a nearly frictionless surface which does not deform food products and to which they do not stick. The surface cleanly cuts or slits products including fillers such as nuts, raisins, dried fruit or chocolate morsels without displacement or plowing.



In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



The vibration of the ultrasonic food processing system using high frequency wave to quickly handle food, eliminates the traditional cutting piece of downtime caused by continuous washing. Ultrasound equipment provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food, makes the production flow and cost minimization of waste minimization and maintenance. Ultrasonic knife up and down 20000 vibrations per second, the slice from the oven or conveyor belt products, or cut the product into a bar.



Specification:



Frequency 20Khz
Power 800W
Input AC110-240V, 50/60Hz
Power Controller stepping or continuous
Length of the blade 305mm
Material Of Cutting Head stainless steel, titanium alloy, alloy steel.
Machine Wight 15~18KGS
Accessories foot switch, additional blade
Cooling Device compressed air mouth can be installed.
Cable Length 3M or customized
Foot Switch available



The difference between traditional cutting and ultrasonic cutting:


Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.



Application:



♦ Bakery and snack foods,

♦ Candy and confectionery cheese/Fish/Prepared meat/Vegetable/Health Bars;

♦ Chocolates, sandwich and wrap cutting;

♦ Dry fruit;

♦ Poultry;

♦ Potted;

♦ Processed meat;

♦ Ground meat;



Why choose us?



1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.
