Product Name: Ultrasonic Welding Transducer Joint Bolt: M6 * 0.75
Ceramic Diameter: 15 Mm Capacitance: 0.7 - 0.8 Nf
Qty Of Ceramic: 2Pcs Frequency: 15Khz
Material: Titanium Output Power: 100 Watt
Max.Amplitude: 4 Um Application: Welding Machine

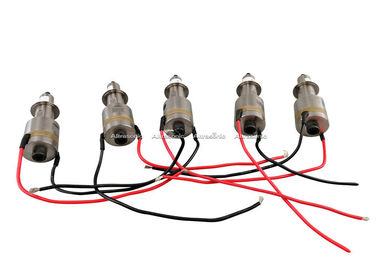

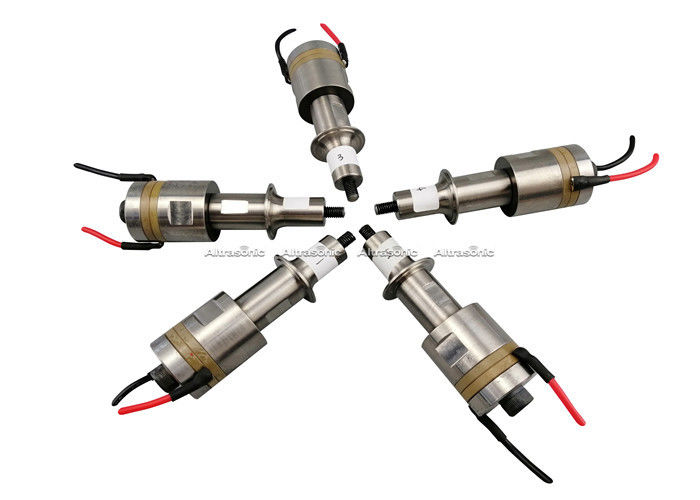

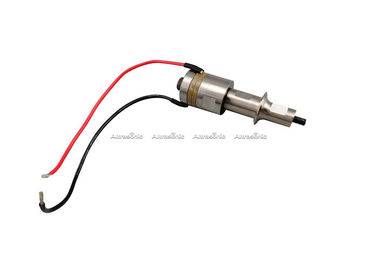

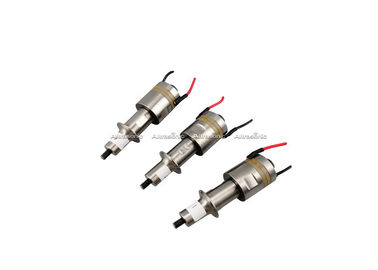

60Khz 100Watt Ultrasonic Welding Transducer With Titanium Booster





Description:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 m in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food.

The ultrasonic cutter is composed of a "transducer" that generates vibration and an "oscillator" that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance. In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to ring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



Specifications:



Model HS-1560-2Z
Frequency 60 khz
Output power 100 watt
Joint bolt M6 * 0.75
Ceramic disc Diameter 15 mm
Quantity of Ceramic discs 2 pcs
Capacitance 0.7 - 0.8 nf
Amplitude 4 um
Material Titanium
Application Welding Machine



Applications:



Our transducer can applied in the following ultrasonic machines:



Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.



Competitive Advantage:



♦ Imported ceramic discs and superior aluminum raw materials

♦ Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

♦ One by one testing to ensure that each transducer performance are excellent.

♦ In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Transducer Type



The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2
PS:we can also customize depend on your requirements.
