CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency

China CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency supplier
CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency supplier CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency supplier CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency supplier

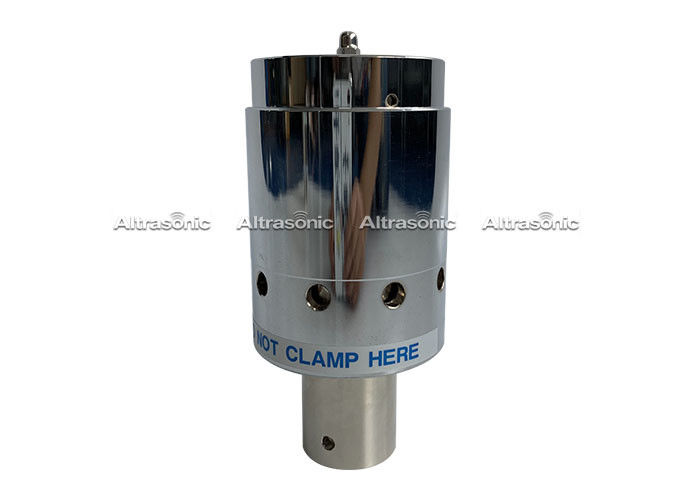

Large Image :  CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB902

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Model Number:: HSB902 Joint Bolt: 1/2-20UNF
Ceramic Diameter: 40 Mm Qty Of Ceramic: 4 Pcs
Frequency: 20 Khz Capacitance: 8000pf
Output Power: 1100 Watt Max.Amplitude: 20 Um
Material: Titanium Application: Welding Machine



20Khz Ultrasonic Welding Transducer Repalcement Branson 902 with High Frequency





Description:



Ultrasonic welding transducer converts electrical energy to mechanical movement, so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the transducer.

The ultrasonic welding transducer is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or sonotrode as we call it.



The Replacement Converter for Branson 902
Direct replacement for the 20khz Branson machine.
You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.
The housing can be custom - made according to your special requirements.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.



Specifications:



Model HSB902
Frequency 20 khz
Output power 1100 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 40 mm
Quantity of Ceramic discs 4 pcs
Capacitance 8000pf
Amplitude 20 um
Material Titanium
Application welding machine



Warranty:


We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Applied Range:


Replacement ultrasonic converter for Branson model, for use with 20KHz welding machine.


Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



Packing sample:

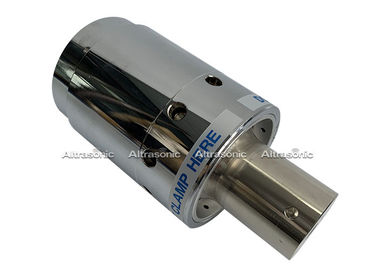

CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency

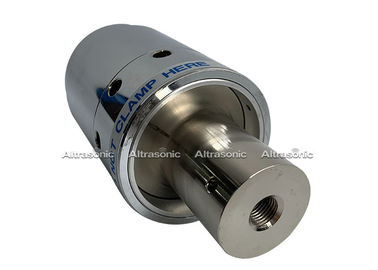

CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency

CE 20Khz Ultrasonic Welding Transducer Repalcement Branson 902 With High Frequency
