Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power

China Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power supplier
Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power supplier Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power supplier Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power supplier

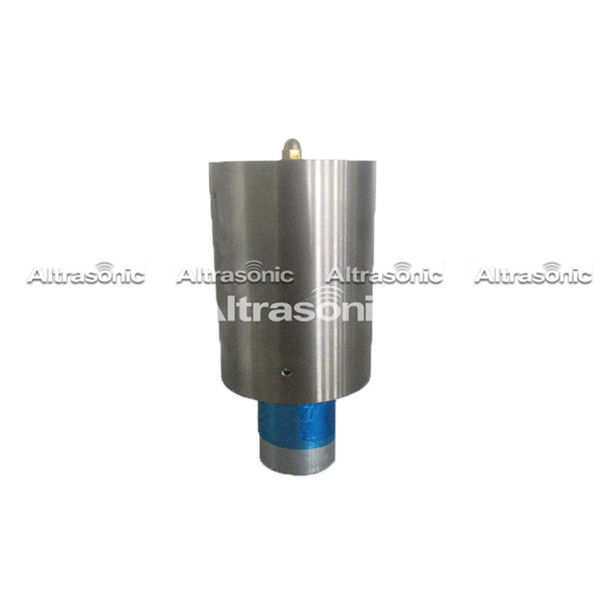

Large Image :  Branson 402 Replacement Ultrasonic Piezo Transducer 20Khz 900 Watt Power

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Replacement Branson CJ20

Payment & Shipping Terms:

Minimum Order Quantity: 2 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 20 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 40mm Type: Branson Type
Application: Welding Qty Of Ceramic: 4pcs
Capacitance: 7.8-8.5nF Power: 900watt



Ultrasonic Welding Transducer Branson 402 Replacement 20Khz 900Watt





Specifications:



Model

Replacement Branson 402

Frequency

20khz

Output power

900watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

40mm

Quantity of Ceramic discs

4pcs

Amplitude

20um

Application

Welding







Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

Ultrasonic Welding Transducer Branson 402 Replacement 20Khz 900Watt
