35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology

China 35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology supplier
35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology supplier 35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology supplier 35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology supplier

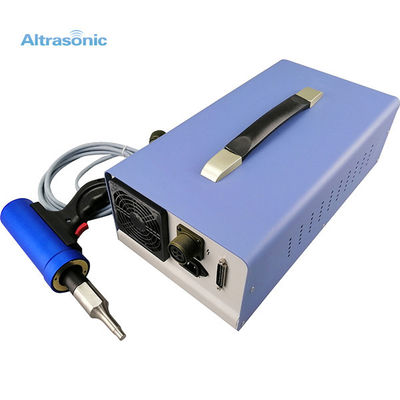

Large Image :  35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Model: HSW35 Frequency: 35Khz
Power: 1000W Horn: ≤10mm
Housing Diameter: 44mm Weight Of Welder: 1.0kg

35Khz 1000Watt Ultrasonic Spot Welding Machine for Automotive Parts Assemble Technology



Description:



Ultrasonic welding is the best choice for your application when you need to connect two molded plastic parts. Ultrasonic welding is an effective means of merging thermoplastic components with energy from high frequency, low amplitude acoustic vibrations. Unlike a friction or vibration welding process, one of the two components is moved to create friction, and ultrasonic welding produces friction from acoustic energy that generates heat and joins the two components together at the molecular level. The whole process can take only a few seconds.





Specification:



Item No. HSW20 HSW30 HSW35 HSW40 HSW50
Frequency 20kHz 30kHz 35kHz 40kHz 50kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg



Application:



• Airbag
• Convertibe top
• FVK Automotive
• Interior
• Lihgt and sun protection
• Tire Cord





Advantage:



• No fraying
• No burns on fabrics
• No emissions of toxic fumes
• No warm up waiting time





35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology



35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology
