High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding

High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding
High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding

Large Image :  High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G2030A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wood case
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding

Description
Power: 3000W Frequency: 20kHz
Generator: 20V/50Hz Cotrol: CPU Control,automatic Scanning/tracking
Components: Digital Generator, Transducer, Booster, Welding Horn Materials Of Horn: Special Steel
High Light:

ultrasonic metal welder

,

ultrasonic metal welding



Ultrasonic Wire Splicing and Terminal Welding



Description:



Ultrasonic rolling welding, mainly used for solar collector panels, solar cell welding, suitable for full-circle aluminum strips equipment for automatic feeding and automatic cutting.

It is applied to the welding processing of solar panels, solar collectors, solar collectors, aluminum-plastic composite pipes, electric heating appliances (heating tube aluminum-copper welding), aluminum corrugated board processing, copper-aluminum plate splicing, etc.; generally applicable to aluminum, Silver, silver-copper alloy, copper, phosphor bronze, brass, copper, bronze, nickel, gold and other high-conductivity metal welding applications, in solar energy, batteries, hardware products are effectively applied.



Specification:



Frequency 20 kHz
Output Power 3000 W
Voltage 380 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 20-30 KG ( Determined by the size of the horn )
Generator Digital Generator





Application:

  • Polyethylene-aluminum pipe(PAP),Aluminum-Plastic laminated tube production
  • Heat exchanger tube sheet welding
  • Solar collector board
  • Aluminum corrugated board processing
  • Electric heating device, heating tube aluminum-copper welding
  • Solar fin welding



Characteristic:



      ● Adopts automatic control technology to make welding operation easy and simple

      ● The ultrasonic system is stable and reliable

      ● An ideal production equipment for welding similar or different conductive alloys and non-ferrous metals of different thicknesses

      ● Ultrasonic solar metal welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel

      ● Simple mechanism and easy to install



Principle of Ultrasonic Metal Welding:



Ultrasonic metal welding uses high-frequency vibration waves to transmit to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers.

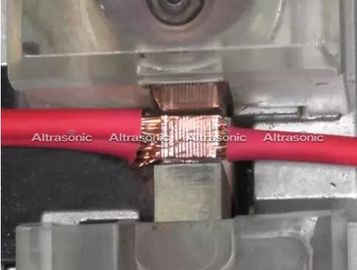

High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding 0

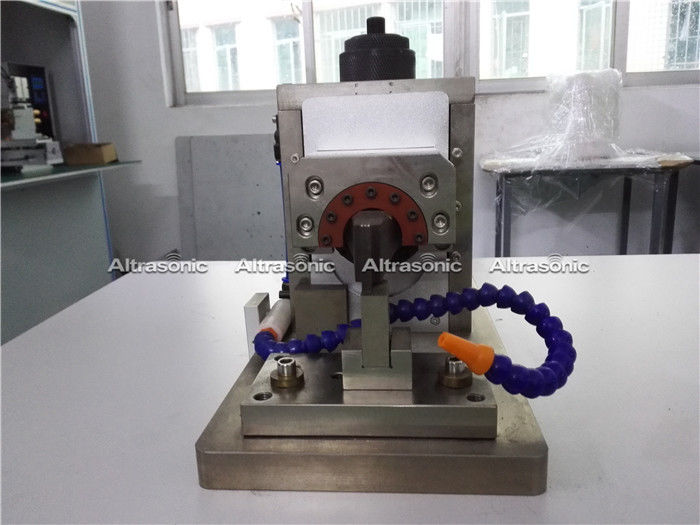

High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding 1

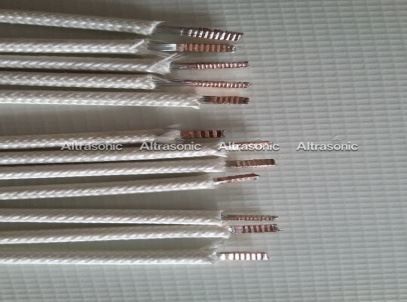

High Speed Ultrasonic Welding Process For Wire Splicing And Terminal Welding 2
