30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife

30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife
30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife 30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife 30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife

Large Image :  30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month

30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife

Description
Frequency: 30Khz Power: 200W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting, Deburring Of Molded Parts Generator: Digital
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices

30Khz Portable Ultrasonic Cutting Machine 200W





Description:



To solve the difficult cutting problem you now have, we recommend you to consider the Ultrasonic Cutters.

I do not emit noise, smoke and cause air contamination. Thus, ultrasonic cutting is an environment- friendly processing method.

Ultrasonic Cutters can smoothly cut difficult-to-cut materials easily such as:

Carbon Prepreg materials

RubberThermoplastics

Leather

Cloth

Nonwoven fabric

Paper

Plastic sheet etc.





Specification:





Model HSPC30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade titanium alloy, stainless steel







30K ultrasonic multi-function handheld cutter applies to:

  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics
  • 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.







Advantages of Ultrasonic Cutting Materials



1. Ultrasonic vibration dramatically reduces resistance during cutting, realizing the best sharpness.

2. Cutting surface finish is good, good bonding performance.

3. It is possible to cut and deburr the hard material and the thick material by the high power specification than before.

4. Fast, high efficiency, no pollution.

5. Even with high power, due to its compact unit structure, it is easy to install in automatic machines and robots.

6. Adopt replacement type knife to reduce running cost

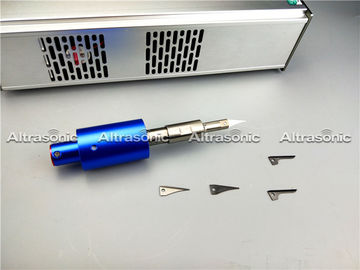

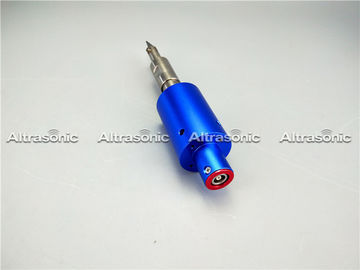

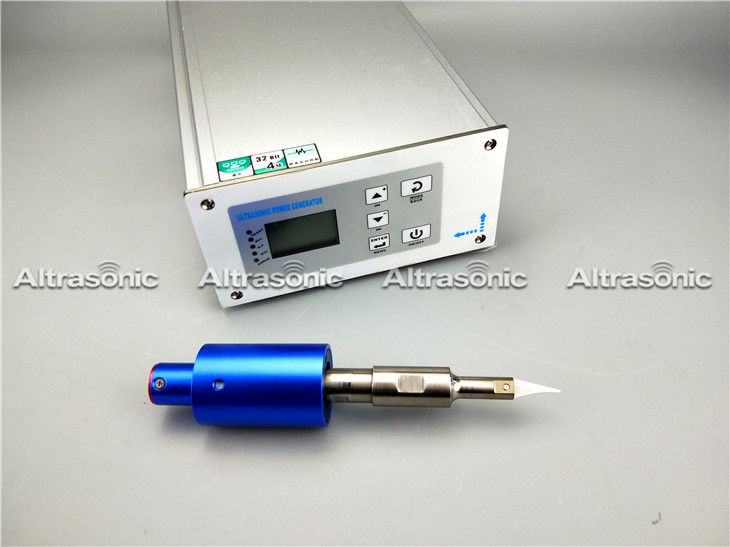

30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife 0

30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife 1

30Khz Portable Ultrasonic Cutting Machine 200W Replaceable Blade Longlife 2
