Product Details:
|
| Frequency: | 30Khz | Power: | 500W |
|---|---|---|---|
| Input: | AC110-240 | Power Controller: | Stepping Or Continuous |
| High Light: | ultrasonic cutting knife,ultrasonic cutting devices |
||

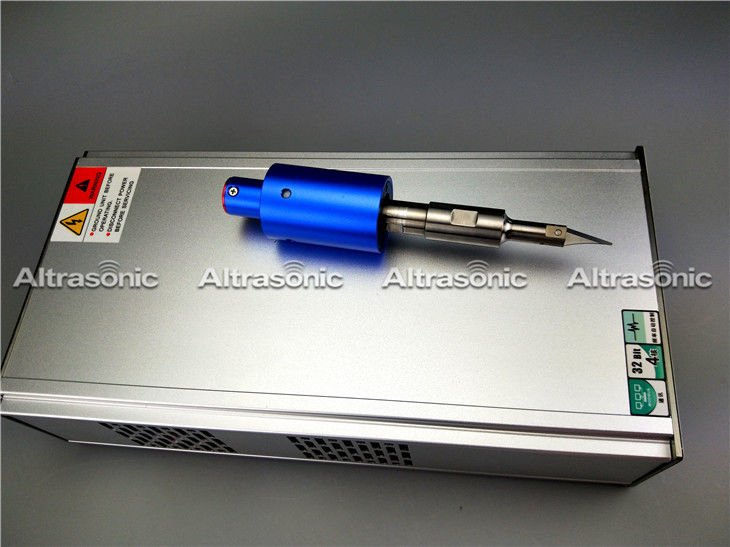

30khz Ultrasonic Cutting Equipment
Specification:
| Model | HSPC30 |
| Frequency | 30KHZ |
| Output Power | 200W |

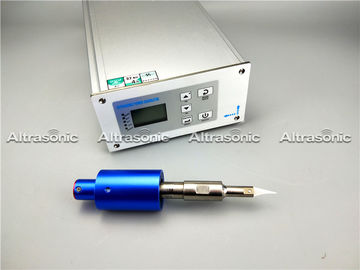

| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |

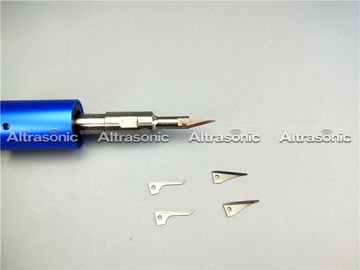

| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc; Cut blade 2pcs; 1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
| Material of blade | titanium alloy, stainless steel |
Description:
Ultrasonic cutting principle is through the ultrasonic generator to 50 / 60Hz current into 20,30 or 40kHz power. The converted high frequency electric energy is again converted into mechanical vibrations at the same frequency by the transducer, and then the mechanical vibration is transmitted to the cutter by means of a set of amplitude modulator devices which can change the amplitude. The cutting tool transmits the received vibration energy to the cutting surface of the workpiece to be cut in which the vibration energy is cut by means of activating the molecular energy of the material to be cut and opening the molecular chain.
Ultrasonic cutting knife maximum output power of 300W, for cutting difficult to cut the material, you can use 1mm thick wear-resistant carbide blade, and the user can replace the blade, increase the life of the cutting tool less cost. Ultrasonic cutting is the use of ultrasonic energy, will be cutting the material of local heating melting, to achieve the purpose of cutting materials, without sharp edge.
This section of the cutting knife with a 1mm thick alloy knife head, sharp head so that the cutting contact surface becomes smaller, reducing the heat of the head, sharp blade with ultrasonic cutting effect is more ideal.
30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.
30K ultrasonic multi-function handheld cutter applies to:
● Natural fibers
● Synthetic fiber
● Thin plastic products(Such as plastic film, cell phone case)
● All types of paper, bottom film
● Rubber, silicone
● Repair of printed circuit board copper foil
● ABS,PP,PE … other organic plastic sheet less than 2mm
● Various types of synthetic fabrics
Advantages of Ultrasonic Cutting Materials
1. Cutting precision is high, rubber is not deformed;
2. Cutting surface finish is good, good bonding performance;
3. Easy to use in automated production;
4. Fast, high efficiency, no pollution;
