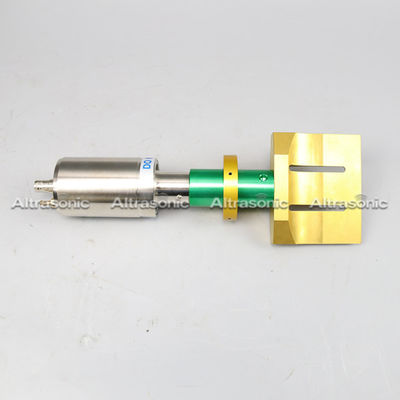

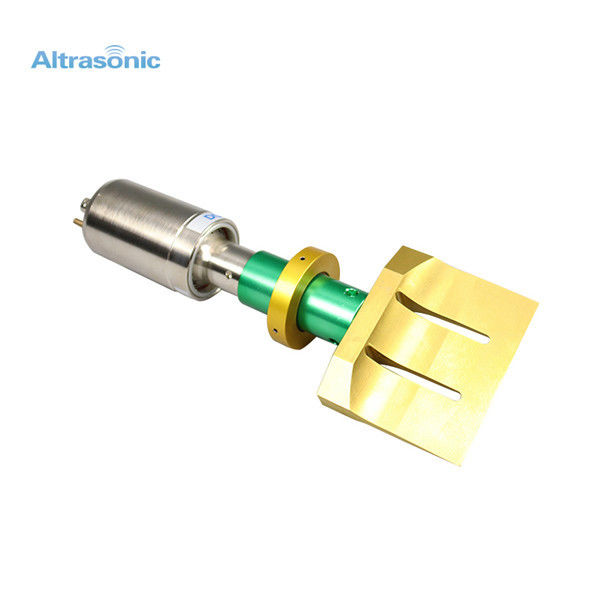

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter
Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter

Large Image :  Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Model Number: HS-CR40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union,paypal
Supply Ability: 3000 sets/month

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter

Description
Frequency: 40kHz Power: 500W- 800W
Input: AC110-240V, 50/60Hz Machine Wight: 4 Kg-16KG
Accessories: Foot Switch, Additional Blade Cable Length: 2M Or Customized
Foot Switch: Available
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter





Specification



Frequency 40Khz
Power 500W- 800W
Input AC110-240V, 50/60Hz
Power Controller stepping or continuous
Material Of Cutting Head aluminum alloy, stainless steel, titanium alloy, alloy steel.
Machine Wight 4 kg-16KG
Accessories foot switch, additional blade
Cooling Device compressed air mouth can be installed.
Cable Length 2M or customized
Foot Switch available



Applications



1. For thermal plastic gate cutting and flush cutting.

2. For rubber, PVC, leather, plastic, cardboard, acrylic, polyprolene cutting

3. For tape and film cutting .

4. For frozen vegetable&meat cutting;

5. For package material cutting

6. For the automotive industry cutting

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter 0



Advantages



The main feature of Ultrasonic cutting machine is which do not need sharp blade, do not need a lot of pressure, no chipping and broken for the material. The cutting knife is with ultrasonic vibration,and the friction resistance is particularly small, therefore the material is not easy to stick on the blade. Especially, the cutting effect on the frozen, sticky, elastic material is obvious. Such as food, rubber or the object with inconvenient pressure, the cutting is particularly effective.

The cutting site has a fusion effect meanwhile it is cutting. The cutting area is perfectly sealed, preventing loose tissue (such as textile material flash) of the cutting material. The use of ultrasonic cutting machine can also be extended, such as digging holes, shoveling, scraping paint, carving, slicing and so on.

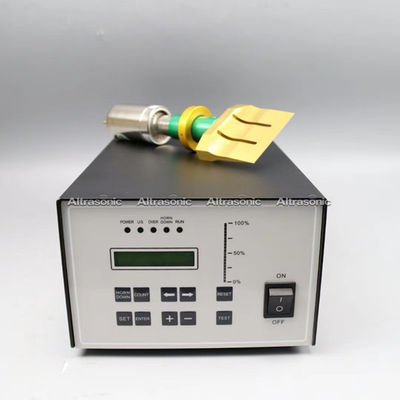

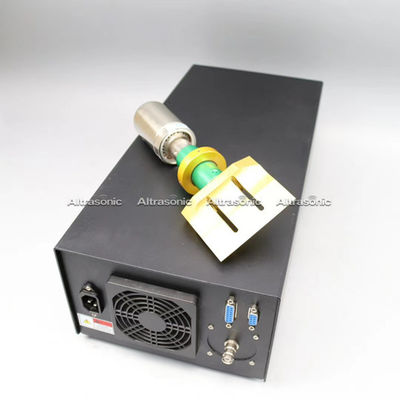

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter 1

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter 2

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter 3

Table Style Special Ultrasonic Cutting Actuator For Rubber With Titanium Cutter 4
