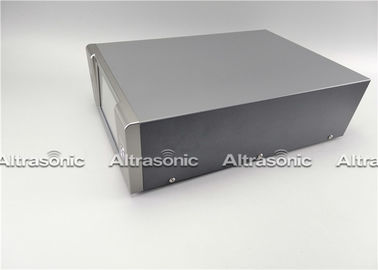

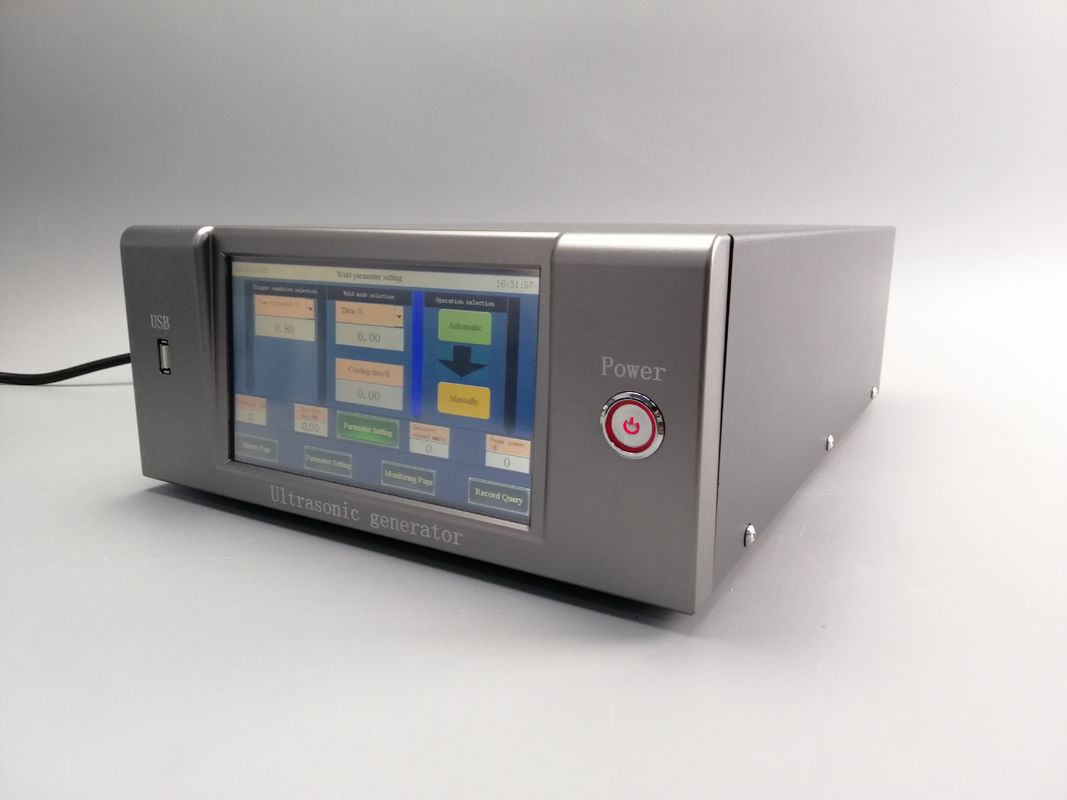

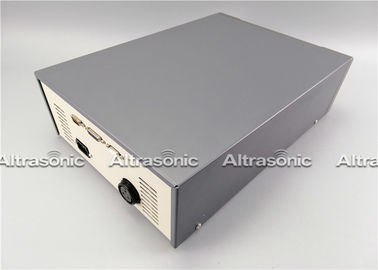

70kHz 100 Watt Ultrasonic Assembly Generator With Automatic Frequency Tracking

70kHz 100Watt Intelligent Ultrasonic Assembly Generator With Automatic Frequency Tracking

Descriptions:

Ultrasonic wire embedding machine has been very mature in the market. We newly developed the 70khz ultrasonic wire embedding machine uses the brand-new HS-V-8.0 digital generator. The frequency automatic tracking is the biggest highlight of HS-V-8.0. This function can eliminate the temperature, static load, machining area, tool wear and other factors drift disadvantages of conventional analog regulator insurmountable, conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.

Specification:

Advantage:

1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.

Comparison:
