50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding

China 50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding supplier
50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding supplier 50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding supplier 50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding supplier

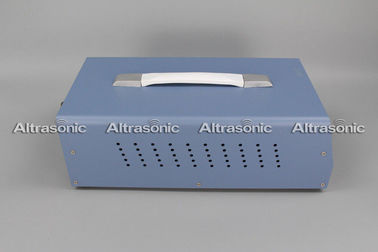

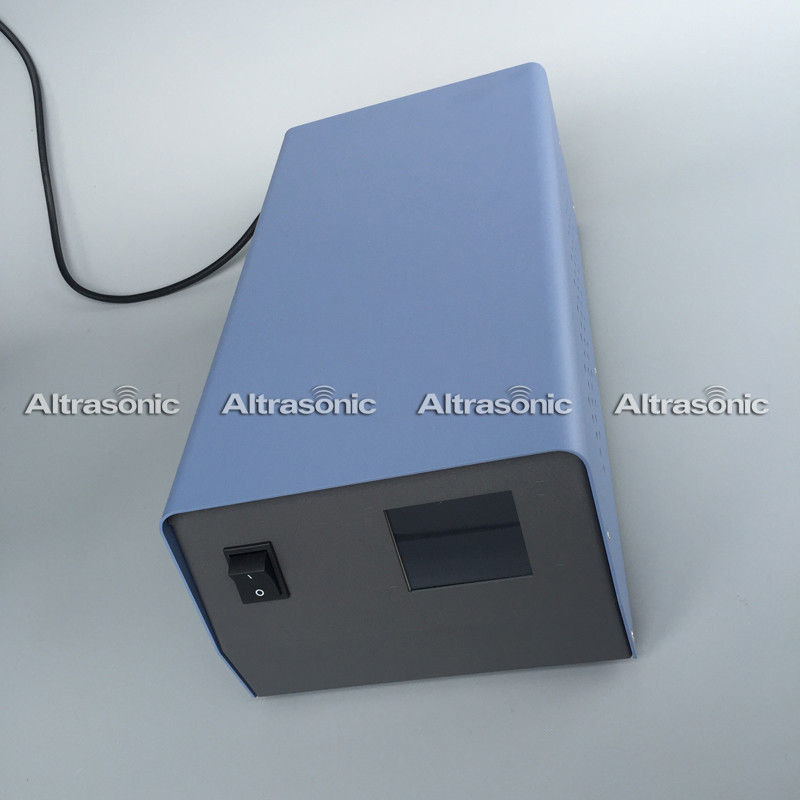

Large Image :  50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GD50

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HS-GD50 Frequency: 50kHz
Power: 500W Frequency Tuning Method: Continue Or Pulse Optional
Size: 530*240*240 Mm Voltage: 220V/110V 50/60HZ
Temperature: ≤300℃ Moisture: ≤85%RH



50kHz 500Watt Ultrasonic Assembly Power Supply for Spot and Rivet Welding





Description:


The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.






Specifications:



Item No. HS-GD50 HS-GD60
Frequency 50kHz 60kHz
Power 500W 100W
Frequency tuning method continue or pulse optional continue or pulse optional



Voltage



220V/110V 50/60HZ

220V/110V 50/60HZ
Temperature ≤300℃ ≤300℃
Moisture ≤85%RH ≤85%RH
Power adjustable 1%-99% 1%-99%





Advantages:



1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easily to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec





Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair Module replacement





WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding

50kHz 500 Watt Ultrasonic Assembly Power Supply For Spot And Rivet Welding
