30kHz Ultrasonic liquid atomization equipment Umbrella atomizing nozzle Low power consumption
Ultrasonic spray (FOG) is to use the energy of ultrasonic water or liquid scattered, forming several microns to 100 microns in size of particles, used for air humidifying, granulating, mixing liquid, promote chemical reactions, spraying, molten metal powder etc.By breaking apart aggloomerated particles as they travel down the nozzle body due to continuous ultrasonic vibrations along the length of nozzle, resulting in the most effective use of functional particles.
Major power supply: 220V 50HZ 2A
Power Consumption: 0.001 Degrees/Kg
The matched transducer: HS-3030-4Z yellow
Atomization Volume: 50L/H
Average Particle Diameter Of Fog: 39um

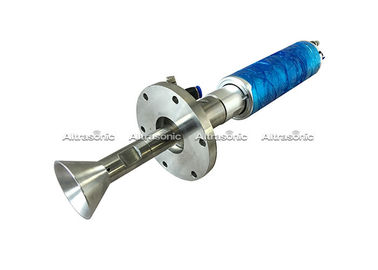

Atomization Head Structure: Trumpet
The Application of Atomizing Media: Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on.
|Frequency||60KHz||50KHz||50KHz||50KHz||40KHz||30KHz||20 KHz||15 KHz|
|Atomization Volume||0.5L/H||2 L/H||2 L/H||2 L/H||10 L/H||70 L/H||100 L/H||150 L/H|
|Average Particle Diameter of Fog||20um||28um||28um||28um||32um||39um||51um||62um|
|Power Consumption||0.01 Degrees/Kg||0.001 Degrees/Kg|
|Atomization Head Structure||Cylindrical||Horn|
|Power||30W||30 W||30 W||30 W||60 W||100 W||300 W||500 W|
|The Application of Atomizing Media||
Ordinary water, a variety of liquid substances, chemical liquid,
a variety of oil mucus, metal melt and so on
Ultrasonic nozzle benefits:
Spray patterns are easily shaped for precise coating applications
Highly controllable spray produces reliable, consistent results
Corrosion-resistant titanium and stainless steel construction
Ultra-low flow rate capabilities, intermittent or continuous
No moving parts to wear out
Drops sizes as small as 13 microns, depending upon nozzle frequency
reduce downtime in critical manufacturing processes
★ A major breakthrough in spray technology, you can spray a variety of liquids.
★ Low power consumption, the fog of great energy saving.
★ No plug, no abrasion, no noise, no pressure, no moving parts.
★ Can be any combination to meet the requirements of the spray volume.
★ The use of high-performance titanium and stainless steel.
