Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding

Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding
Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding

Large Image :  Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding

Product Details:
Place of Origin: China
Brand Name: ALTRASONIC
Certification: CE
Model Number: HS-GD30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month

Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding

Description
Item No.: HS-GD30 Frequency: 30kHz
Power: 1000W Frequency Tuning Method: Continuous
Voltage: 220V 50/60Hz Currents: 10A
Environment Temperature: 5-50℃ Cycle Rate: 200CPM
High Light:

ultrasonic generator

,

ultrasound generator



Ultrasonic Power Supply 30kHz 1000Watt Generator for Spot Welding





Description:


The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.





Ultrasonic Welding Principle:



When ultrasonic effects on the contact area of thermoplastic plastic, it will produce tens of thousands times per second high-frequency vibration. This the high-frequency vibration achieves a certain amplitude, and passes the ultrasonic energy to the welding area through the welding pieces. Because of the large resistance at the interface of the two welding area, it will produce local high temperature. And also because of poor thermal conductivity of plastic, can not be distributed in time, gathered in the welding area, resulting in two plastic contact surface rapid melting, coupled with a certain pressure, to integrate into one. When the ultrasonic stops, let the pressure last for a few seconds to make it solidified, thus forming a solid molecular chain, to achieve the purpose of welding, welding strength can be close to the strength of raw materials. The quality of ultrasonic plastic welding depends on the amplitude of the transducer and the horn, the welding pressure and the welding time. The welding time and welding horn pressure can be adjusted. The amplitude depends on transducer and booster. The three factors of interaction have a suitable value, if the energy exceeds the appropriate value, the plastic melting amount will be large, easy to deformation of welding; if the energy is small, it is not easy to solder, the pressure can not be too much. This optimum pressure is the product of the length of the welded part and the edge of the optimum pressure per 1mm.




Specifications:





Item No. HS-GD28 HS-GD30 HS-GD35
Frequency 28kHz 30kHz 35kHz
Power 1000W 1000W 1000W
Frequency tuning method Continuous Continuous Continuous



Voltage

220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Currents 10A 10A 10A
Environment temperature 5-50℃ 5-50℃ 5-50℃
Cycle Rate 200CPM 200CPM 200CPM





Advantages:



1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easily to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec





Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair Module replacement

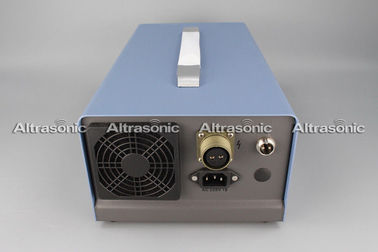

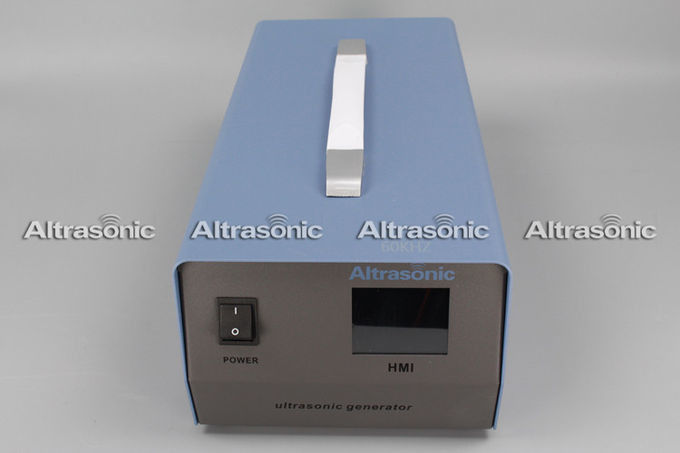

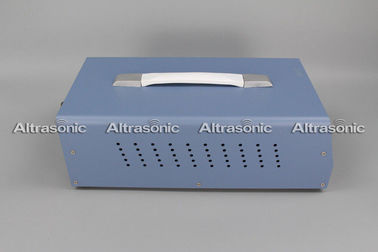

Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding 0

Mini Ultrasonic Power Supply 30kHz Ultrasonic Frequency Generator For Spot Welding 1
