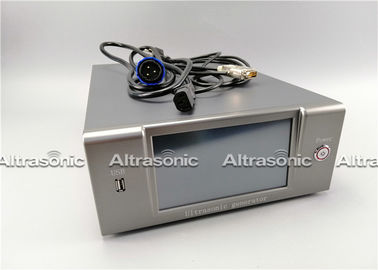

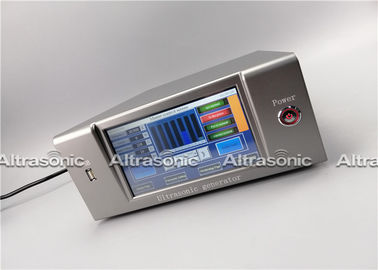

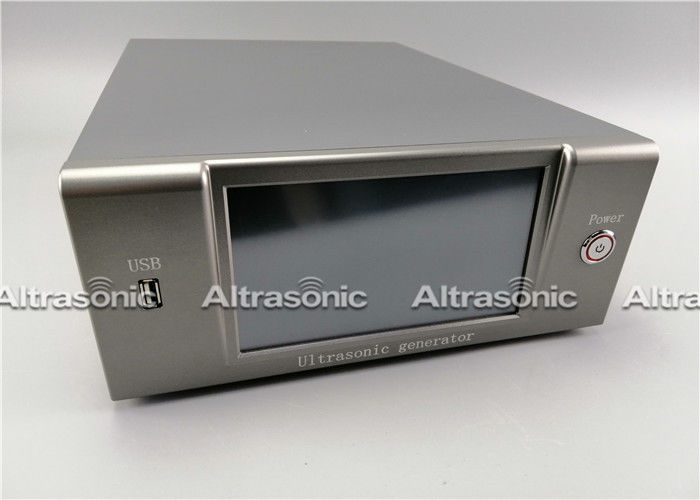

5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking

China 5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking supplier
5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking supplier 5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking supplier 5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking supplier

Large Image :  5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking

Product Details:

Place of Origin: China
Brand Name: ALTRASONIC
Certification: CE
Model Number: HS-GD2050

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HS-GD2050 Frequency: 20kHz
Power: 5000W Frequency Tuning Method: Auto Tuning
Automatic Frequency Adjustment Range: ±2 Power Adjustable: 30%-99%
Frequency Adjustable: 10%-99% Warranty: 1 Year



20kHz 5000W Strong Output Ultrasonic Generator With Automatic Frequency Tracking





Description:

The principle of ultrasonic welding by the ultrasonic generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.


Specifications:



Item No. HS-GD2010 HS-GD2015 HS-GD2020 HS-GD2030 HS-GD2040 HS-GD2050
Frequency 20kHz 20kHz 20kHz 20kHz 20kHz 20kHz
Power 1000W 1500W 2000W 3000W 4000W 5000W
Frequency tuning method Auto tuning Auto tuning Auto tuning Auto tuning Auto tuning Auto tuning
Automatic frequency adjustment range ±2 ±2 ±2 ±2 ±2 ±2
Power adjustable 30%-99% 30%-99% 30%-99% 30%-99% 30%-99% 30%-99%
Frequency adjustable 10%-99% 10%-99% 10%-99% 10%-99% 10%-99% 10%-99%
Net weight 10kgs 10kgs 10kgs 10kgs 10kgs 10kgs





Advantage:



1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.




Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair Module replacement



5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking

5000W Strong Output Ultrasonic Power Generator With Automatic Frequency Tracking
