Product Details:
|
| Item No.: | HS-GD2010 | Frequency: | 20kHz |
|---|---|---|---|
| Power: | 1000W | Frequency Tuning Method: | Auto Tuning |
| Automatic Frequency Adjustment Range: | ±2 | Power Adjustable: | 30%-99% |
| Frequency Adjustable: | 10%-99% | Shipping: | TNT DHL UPS FEDEX |
| High Light: | ultrasonic generator,ultrasound generator |
||

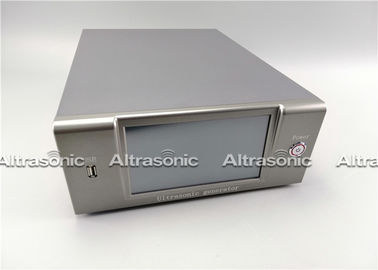

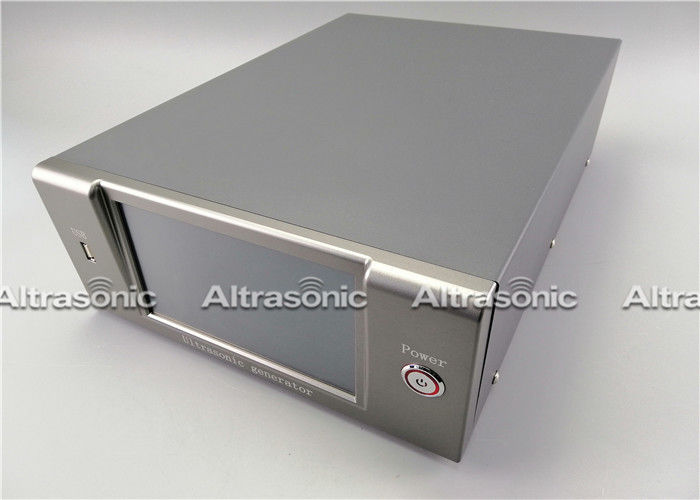

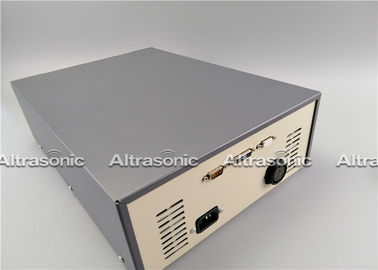

Intelligent Ultrasonic Generator 20kHz 1000W RS485 Communications
Description:
The principle of ultrasonic welding by the ultrasonic generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.
Specification:
| Item No. | HS-GD2010 | HS-GD2015 | HS-GD2020 | HS-GD2030 | HS-GD2040 | HS-GD2050 |
| Frequency | 20kHz | 20kHz | 20kHz | 20kHz | 20kHz | 20kHz |
| Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W |
| Frequency tuning method | Auto tuning | Auto tuning | Auto tuning | Auto tuning | Auto tuning | Auto tuning |
| Automatic frequency adjustment range | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Power adjustable | 30%-99% | 30%-99% | 30%-99% | 30%-99% | 30%-99% | 30%-99% |
| Frequency adjustable | 10%-99% | 10%-99% | 10%-99% | 10%-99% | 10%-99% | 10%-99% |
| Net weight | 10kgs | 10kgs | 10kgs | 10kgs | 10kgs | 10kgs |
Advantage:
1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.
2. Automatic frequency tracking.
3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.
4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.
5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.
6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.
7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.
Comparison:
| Analog generator | Digital generator | |
| Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
| Automatic search | × | ● |
| Automatic frequency tracking | × | ● |
| Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
| Power regulation | × | ● |
| 24 hours of continuous work | × | ● |
| Non resonant condition | × | ● |
| LCD | × | ● |
| Add the PLC protocol | × | ● |
| Automatic circuit protection | Bad, easy to cause the damage of components | Good |
| Repair method | Professional repair | Module replacement |
