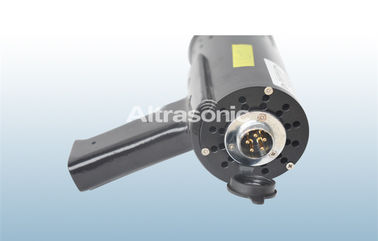

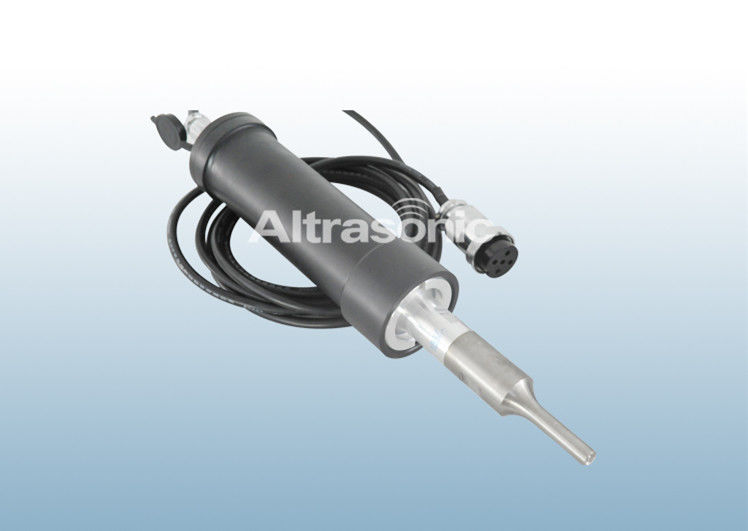

1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding

China 1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding supplier
1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding supplier 1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding supplier 1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding supplier

Large Image :  1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 weekdays after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Item No.: HSW20 Frequency: 20kHz
Power: 1000W Horn: ≤12mm
Housing Diameter: 44mm Color: Bule And Silver
Shipping: TNT UPS DHL FEDEX Warranty: 1 Year



1000W 20kHz Ultrasonic High Power Spot Welding System for Auto Parts Welding





Description:



Ultrasonic welding of thermoplastics causes local melting of the plastic due to absorption of vibration energy. The vibrations are introduced across the joint to be welded. In metals, Ultrasonic welding occurs due to high-pressure dispersion of surface oxides and local motion of the materials. Although there is heating, it is not enough to melt the base materials. Vibrations are introduced along the joint being welded.

Ultrasonic is not limited to only thermoplastic materials. An ultrasonic assembly process can also be used to install threaded brass inserts into molded plastic bosses; stake plastic bosses over metal plates or printed circuit boards; swage over standing walls to entrap another component; perform continuous line seals on thin films and fabrics; seal the ends of collapsible squeeze tubes; accomplish perimeter seals on clam shell packages; spot weld corrugated plastic sheets in the manufacture of boxes; and much more.





Specification:

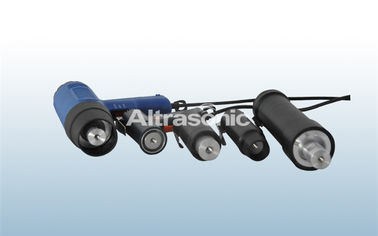

Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg





Advantage:



1. Short welding times (in the order of tenth of seconds)
2. Aesthetic perfection
3. Waterproof welding stable for a long time
4. Labor savings
5. Energy-efficient
6. Flexibility
7. Possibility of welding even in the presence of foreign bodies
8. Excellent mechanical seal
9. Eliminating the use of solvents and adhesives.





Application:



Appliance In this high-volume market, hermeticity, strength and also cosmetic appearance are important. Applications include: steam iron, pump housing, vacuum cleaner wand, and dishwasher spray arm.
Automotive Hermetic seals in applications such as lenses, filters and valves. Other applications include: glove box door, instrument cluster, air diverter and mass airflow sensor.
Business "Clean" assemblies with reduced particulate matter are produced on information storage discs. Other applications include the assembly for ribbon cartridges, and audio and video cassettes.
Consumer Precision welding, staking and forming operations are used in the manufacture of the Swatch®.
Electrical Multiple staking and inserting applications are often automated for high-volume production requirements with consistent reliability. Applications include: terminal blocks, connectors, switches (e.g. toggle, dip, rotary quick and diaphragm), and bobbin assemblies.
Medical Non-contamination and the ability to be operated in a clean room are as important as the strength of the weld. Reliable, repeatable assemblies for critical life-support devices are produced with new capabilities in process control. Applications include: arterial filter, cardiometry reservoir, blood/gas filter, face mask and IV spike/filter.
Packaging From aseptic packages to toothpaste tubes, the ability of ultrasonic assembly to seal through product contamination in the joint area is a major advantage. In addition to good cosmetic appearance, ultrasonic assembly provides tamper-evident seals for blister packs. Applications include: condiment dispenser, blister package, juice pouch, juice carton and plastic coated paper cups.
Toys In this highly competitive industry, the elimination of adhesives, screws and solvents, or other consumables is a bonus added to strong, safe, flash-free assemblies.



1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding

1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding
