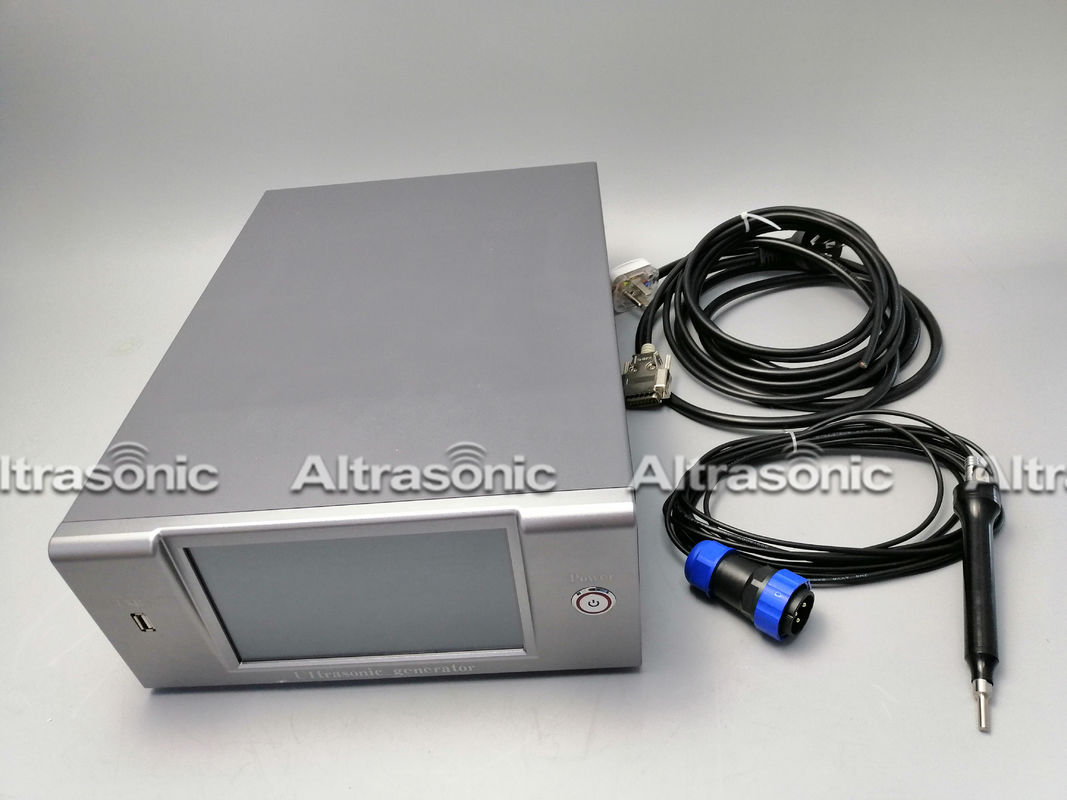

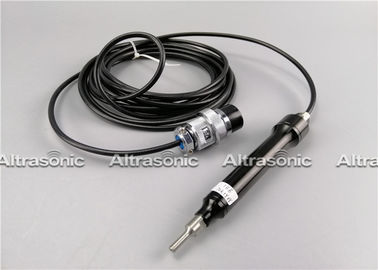

70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment

China 70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment supplier
70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment supplier 70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment supplier 70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment supplier

Large Image :  70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW70

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HSW70 Frequency: 70kHz
Power: 100W/500W Power Dajustion: Intermittent Or Continuous
Switch: Manual, Pedal Or External Control System Work Time Control: 0-999s
Generator: Digital Generator Power Cord: 5 Meters

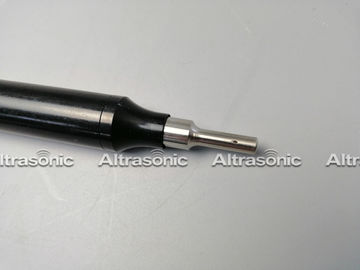

The Threading Hole: Φ0.3 Mm Or Customized Outer Housing: Aluminum



70kHz Strong Output Ultrasonic Wire Embedding Machine With Amplitude Stepless Adjustment





Description:



China's first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0 is one of the masterpieces from Hangzhou Altrasonic Technology Co., Ltd. in 2017. It is the leading brand of intelligent ultrasound in China. It uses high-performance microprocessor anti-interference to realize of electronic control parameters are managed by the microcomputer. Intelligent frequency control system, eliminating the inconvenience of manual FM, Sonic overload automatic detection, Tracking real-optimal resonance point, Vibration set temperature remains the lowest point, Frequency welding head temperature changes followed, Themachine automatically adjusts to run more stable.





Advantage:



High stability All digital integrated circuits adopt high-performance anti-interference processor imported from the United States. At the same time, the number of components is reduced, the hardware structure is simplified, and the voltage regulation function is added to improve the reliability and stability of the system.
Frequency automatic tracking digital frequency synthesis technology combined with digital phase-locked loop frequency tracking of composite control technology, can eliminate temperature, static load, processing area, tool wear and other factors drifting conventional analog regulator is difficult to overcome shortcomings, is conducive to parameter adjustment It is convenient to modify the control scheme and implement various new control strategies through the modification of the program software.
Strong output the application of IGBT power module plus his exciting oscillating circuit structure, so that the output power is more than 1.5 times that of the traditional self-excited circuit.
Amplitude infinite adjustment amplitude can be increased or decreased in the process of adjustment, can also be fine-tuned, effectively prevent the size of plastic parts can be perfectly welded, effectively reduce the penetration, burns, with defective product monitoring function, more suitable for automated use, The setting range of the amplitude is 10%~100%
Intelligent protection and fault alarm tips mold current is too high protection, frequency offset protection, total output is too large protection. If the equipment fails, the generator will stop working immediately and prompt the corresponding fault reason until the technician removes the fault.
Intelligent closed loop amplitude control technology The implemented amplitude size adjustment is independent of the input supply voltage and load fluctuations to maintain a constant amplitude output.

Multiple welding modes A variety of welding mode switching, so that the welding accuracy is higher, the scope of application is wider, the welding effect is better.





Our Service:


1. 24-hour after-sales response
2. Multilingual service
3. Targeted after-sale technology upgrade solutions
4. Ultrasonic parts supply and technical support services
5. Multi-platform, multi-channel, multi-network after-sales service
6. Efficient after-sales and equipment health management system



FAQ:


1. Q: What are the advantages for digital generator?
A: Automatic frequency tracking; Adjustable amplitude; Different working modes can be selected; Part can be connected to PLC for programming control and monitoring.

2. Q: What is the use of the RS485 interface?
A:
It can be connected for programming and monitoring.

3. Q: What is the difference between RS232 communication and RS485 communication?

  • Different transmission modes. RS232 adopts unbalanced transmission mode, which is called single-terminal communication. RS485 adopts balanced transmission, namely differential transmisson;
  • Different transmission distances. RS232 adopts communication between local devices, and the transmission distance is generally no more than 20m. The RS485 can travel from tens of meters to thousands of meters;
  • The RS232 allows only one-to-one communication, while the RS485 interface allows up to 128 transceivers to be connected on the bus.
