60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn

China 60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn supplier
60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn supplier 60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn supplier 60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn supplier

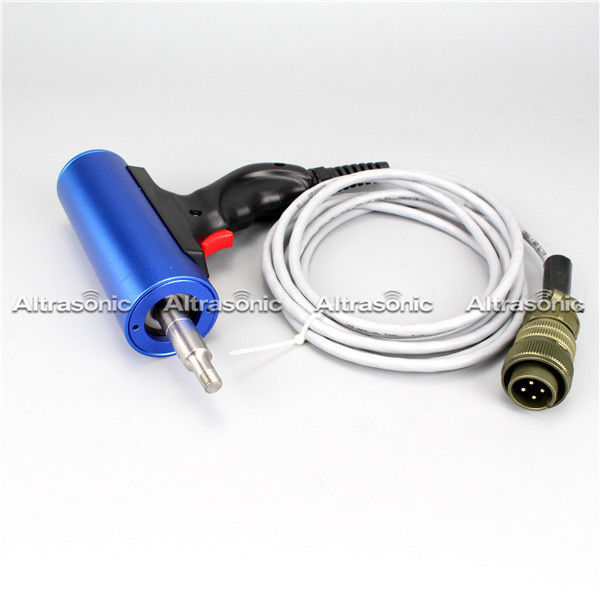

Large Image :  60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW60

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HSW60 Frequency: 60kHz
Power: 100W/500W Horn: ≤10mm
Housing Diameter: 44mm Color: Bule And Silver
Shipping: TNT UPS DHL FEDEX Warranty: 1 Year



60kHz 100W/500W Ultrasonic Spot Welding Machine Handheld Titanium Horn





Description:



Ultrasonic welding uses high frequency, low amplitude vibration to create heat between the two materials being joined. When used with plastics, it is important that both materials are made from similar amorphous polymers and have near equivalent melting points. The thermal rise in the bonded area is produced by the absorption of vibrations and the friction of the surfaces of the parts. The material plasticizes locally, creating an insoluble connection between both parts within a very short period of time.





Specification:



Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg





Advantage:



1. Lightweight

Thanks to their plastic housing, the ultrasonic hand welding units are extremely light yet also robust

2. Ergonomic shape

The weight of the ultrasonic hand welding guns is perfectly balanced thanks to their design, making them feel even lighter to handle as a result

3. Service friendly

The converter can be changed over in no time

4. Convenient working

Operating the hand unit is simple, safe, comfortable and intuitive

5. Air cooling

Air cooling for the sonotrode and the converter is pre-integrated in the hand unit and should be used as required





Application:



Appliance In this high-volume market, hermeticity, strength and also cosmetic appearance are important. Applications include: steam iron, pump housing, vacuum cleaner wand, and dishwasher spray arm.
Automotive Hermetic seals in applications such as lenses, filters and valves. Other applications include: glove box door, instrument cluster, air diverter and mass airflow sensor.
Business "Clean" assemblies with reduced particulate matter are produced on information storage discs. Other applications include the assembly for ribbon cartridges, and audio and video cassettes.
Consumer Precision welding, staking and forming operations are used in the manufacture of the Swatch®.
Electrical Multiple staking and inserting applications are often automated for high-volume production requirements with consistent reliability. Applications include: terminal blocks, connectors, switches (e.g. toggle, dip, rotary quick and diaphragm), and bobbin assemblies.
Medical Non-contamination and the ability to be operated in a clean room are as important as the strength of the weld. Reliable, repeatable assemblies for critical life-support devices are produced with new capabilities in process control. Applications include: arterial filter, cardiometry reservoir, blood/gas filter, face mask and IV spike/filter.
Packaging From aseptic packages to toothpaste tubes, the ability of ultrasonic assembly to seal through product contamination in the joint area is a major advantage. In addition to good cosmetic appearance, ultrasonic assembly provides tamper-evident seals for blister packs. Applications include: condiment dispenser, blister package, juice pouch, juice carton and plastic coated paper cups.
Toys In this highly competitive industry, the elimination of adhesives, screws and solvents, or other consumables is a bonus added to strong, safe, flash-free assemblies.







60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn

60kHz 100W / 500W Ultrasonic Spot Welding Machine Handheld Titanium Horn
