Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System

China Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System supplier
Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System supplier Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System supplier Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System supplier

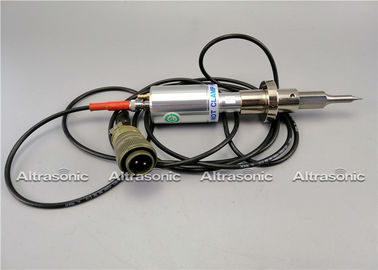

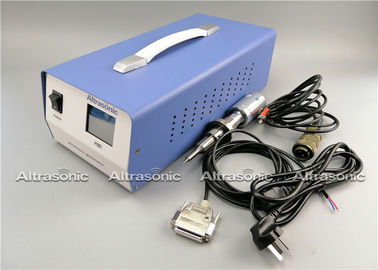

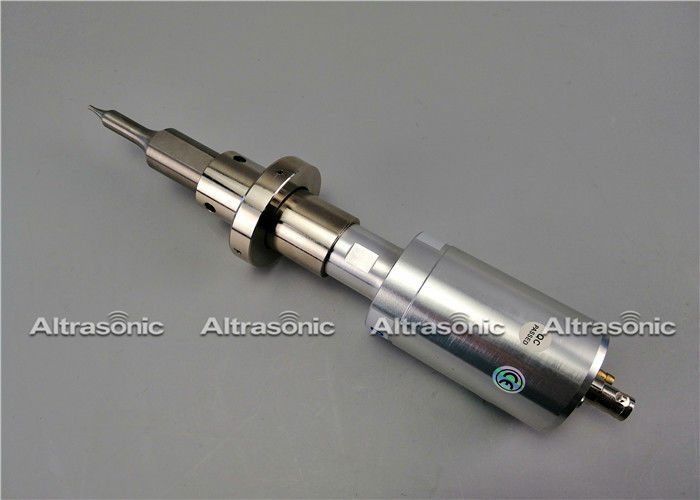

Large Image :  Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW40

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HSW40 Frequency: 40kHz
Power: 500W Horn: ≤10mm
Housing Diameter: 44mm Color: Blue And Silver
Shipping: TNT DHL UPS FEDEX Warranty: 1 Year





Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System Titanium Alloy





Description:



Ultrasonic plastic welding is suitable for virtually all thermoplastics. When planning welds between semi-crystalline plastic pieces of work, it is important to remember that the weld behaviour of these plastics differs considerably from that of amorphous plastics.
Ultrasonic plastic welding can be used to a limited extent for joining together two different thermoplastics (amorphous plastics). Ultrasonic welding is not suitable for use with thermo setting plastics. Today ultrasonic welding is used in every industry that processes plastics. Most common uses are in the Automotive, Medical, Textile, Food, Plastics, and Packaging industries.





Specification:



Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg





Advantage:



1. Ultrasonic is the fastest, most repeatable and economical assembly method available to the industry today.

2. With ultrasonic, most thermoplastics can be assembled without heat, mechanical fasteners, or hazardous consumables such as adhesives or solvents.

3. Ultrasonic can join parts - small or large, simple or complex - with lower reject rates than any other method.

4. Using ultrasonic, labor - both as a skill factor and as a time factor - is significantly reduced. And since the equipment can readily be automated, any non-technical operator can be trained in minutes to produce high volume, high integrity assemblies.





Application:



Appliance In this high-volume market, hermeticity, strength and also cosmetic appearance are important. Applications include: steam iron, pump housing, vacuum cleaner wand, and dishwasher spray arm.
Automotive Hermetic seals in applications such as lenses, filters and valves. Other applications include: glove box door, instrument cluster, air diverter and mass airflow sensor.
Business "Clean" assemblies with reduced particulate matter are produced on information storage discs. Other applications include the assembly for ribbon cartridges, and audio and video cassettes.
Consumer Precision welding, staking and forming operations are used in the manufacture of the Swatch®.
Electrical Multiple staking and inserting applications are often automated for high-volume production requirements with consistent reliability. Applications include: terminal blocks, connectors, switches (e.g. toggle, dip, rotary quick and diaphragm), and bobbin assemblies.
Medical Non-contamination and the ability to be operated in a clean room are as important as the strength of the weld. Reliable, repeatable assemblies for critical life-support devices are produced with new capabilities in process control. Applications include: arterial filter, cardiometry reservoir, blood/gas filter, face mask and IV spike/filter.
Packaging From aseptic packages to toothpaste tubes, the ability of ultrasonic assembly to seal through product contamination in the joint area is a major advantage. In addition to good cosmetic appearance, ultrasonic assembly provides tamper-evident seals for blister packs. Applications include: condiment dispenser, blister package, juice pouch, juice carton and plastic coated paper cups.
Toys In this highly competitive industry, the elimination of adhesives, screws and solvents, or other consumables is a bonus added to strong, safe, flash-free assemblies.





Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System

Titanium Alloy Ultrasonic Assembly 40kHz 500W Automatic Spot Welding System
